Wiper Arm: Adjustments

Wiper Arm/Nozzle Adjustment

Wiper arms stop position

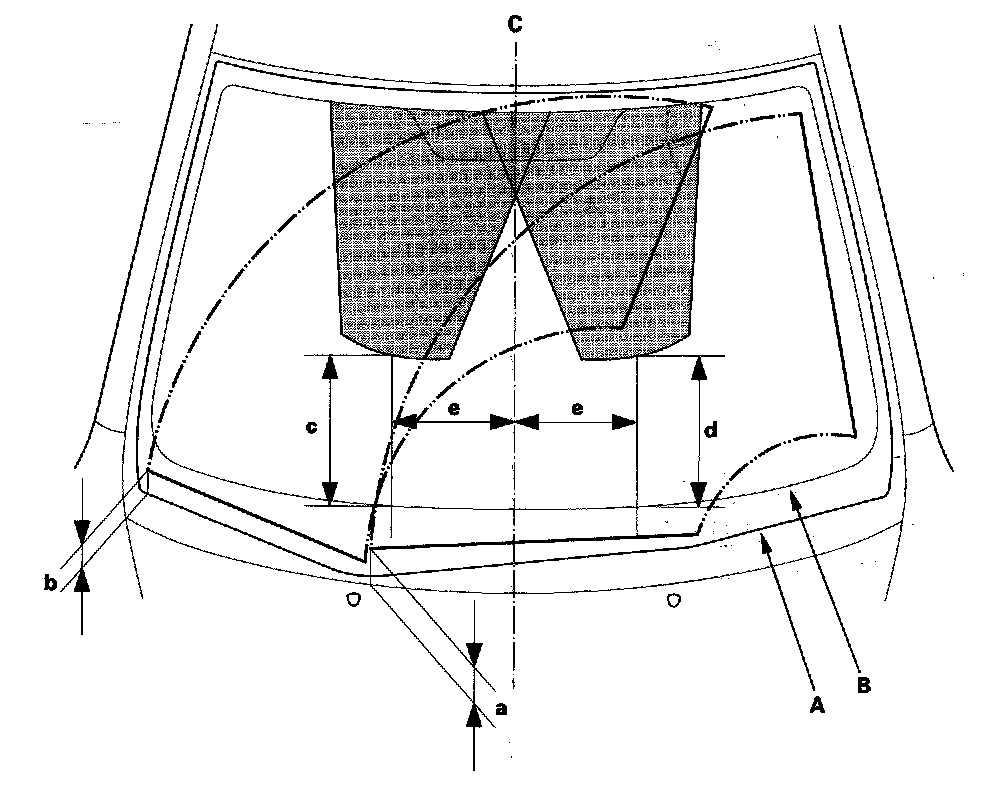

1. When the wiper arms stop at automatic stop position, confirm the wiper arms are at the standard position.

a: Position at about 1.5 in. (40 mm) from the top of cowl cover (A)
b: Position at about 1.2 in. (33 mm) from the top of cowl cover (A)

Washer nozzle position

2. When you jet the washer fluid, confirm 50% or more of the jet fluid splashes down within the slash area. If there are not standard positions, adjust the nozzles.

c: Position at about 11.6 in. (295 mm) from the top of black ceramic (B) at lower windshield
d: Position at about 11.6 in. (295 mm) from the top of black ceramic (B) at lower windshield
e: Position at about 11.2 in. (285 mm) from the windshield center line (C)
