Audio-HVAC Display Panel Removal/Installation

Audio-HVAC Display Panel Removal/Installation

1. Remove the audio-HVAC display module.

NOTE: Eject all the CDs before disconnecting the audio unit and CD changer to prevent damaging the CD player's load mechanism.

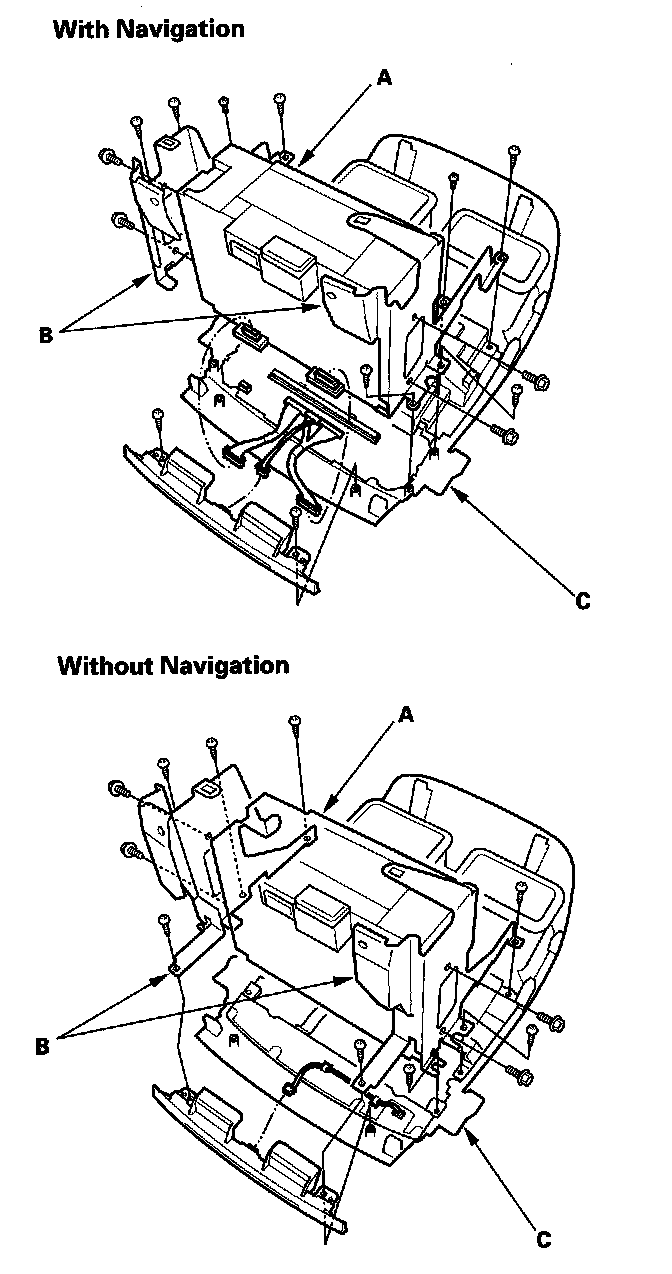

2. Remove the mounting screws and audio unit (A) from the radio bracket (B), and separate the audio unit from the audio-HVAC display panel (C).






3. Install the audio unit and audio-HVAC display module in the reverse order of removal.
