Audio-HVAC Subdisplay Unit Replacement
Audio-HVAC Subdisplay Unit ReplacementWith Navigation 1.
Remove the Audio-HVAC Display Module.
2.

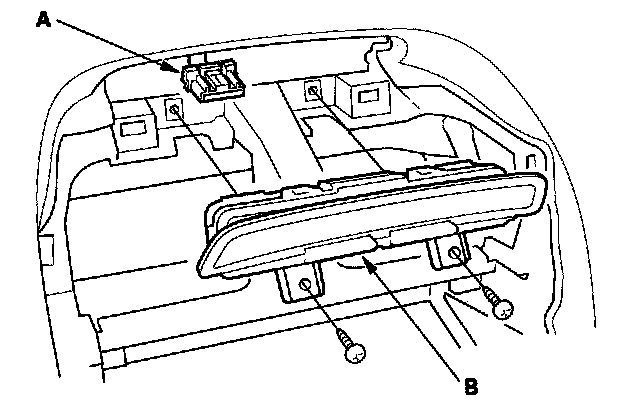

Remove the two mounting screws.
3.
Disconnect the 10P connector (A) from the subdisplay unit (B).
4.
Install the subdisplay unit in the reverse order of removal.
