Service Specifications
Flywheel Torque the
flywheel mounting bolts (B) in a crisscross pattern in several steps.

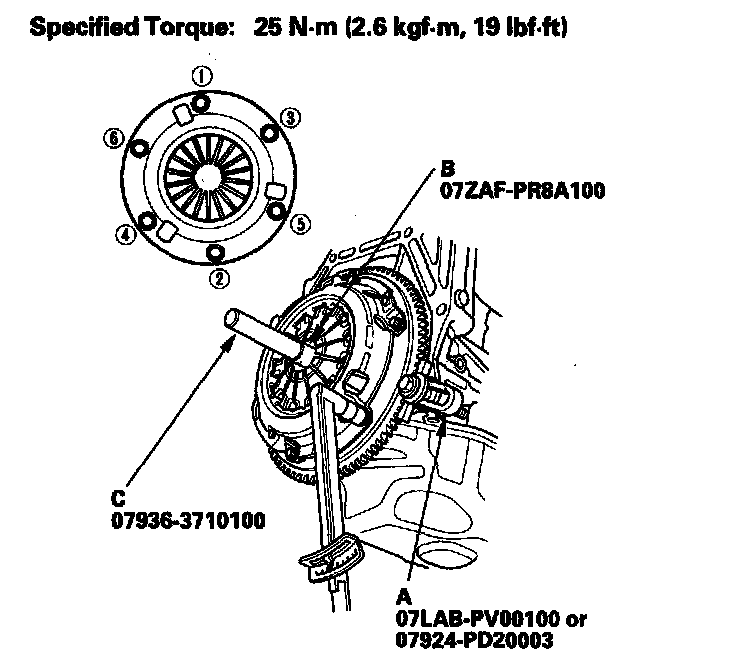

Pressure plate Torque the mounting bolts in a crisscross pattern. Tighten the bolts in several steps.
Clutch Pedal Clutch Pedal Stroke
130-140 mm (5.12-5.51 in.)
Clutch Pedal Free play
10-18 mm (0.39-0.71 in.)
Clutch Pedal Height
191 mm (7.52 in.)
Clutch Pedal Disengagement Height
95 mm (3.74 in.)
