Crankshaft, Engine

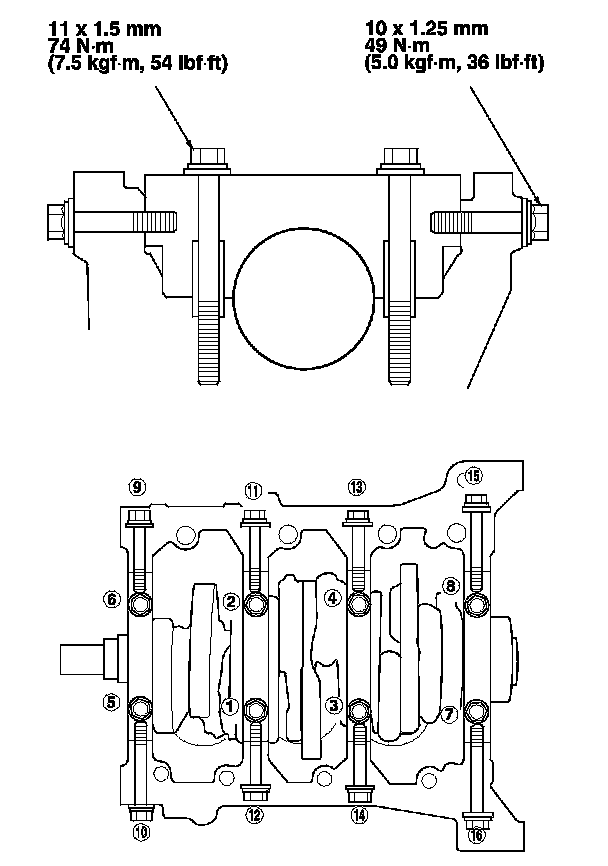

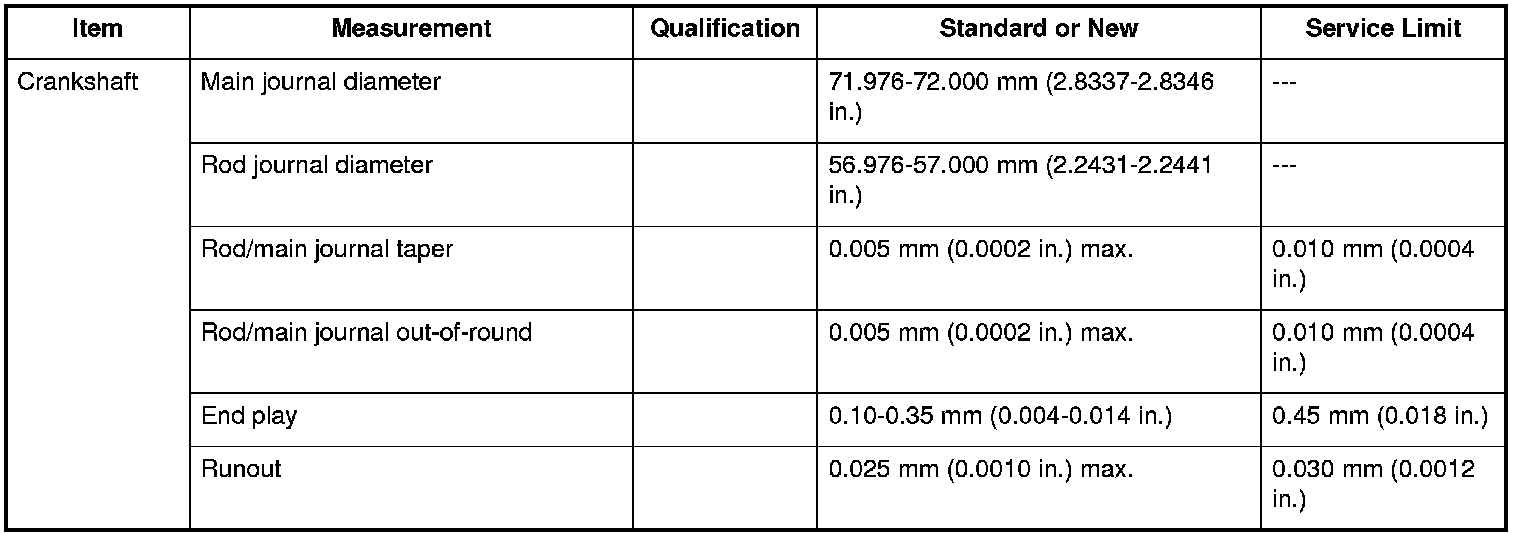

Crankshaft SpecificationsCrankshaft Main bearing Tighten the bearing cap bolts, and then the bearing cap side bolts to the specified torque in the sequence as shown. Repeat the torque sequence again to asure the bolts are properly torqued

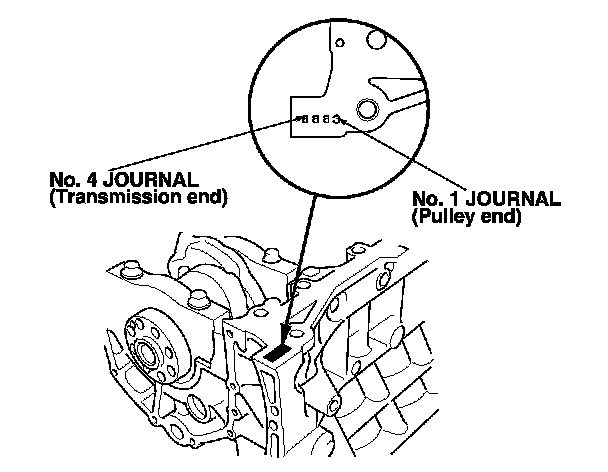

Crankshaft bearing size codesCrankshaft Bore Code Location

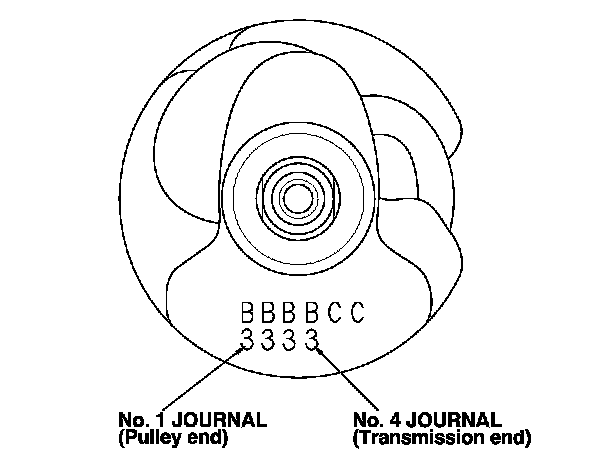

Main journal code locations (numbers or bars)

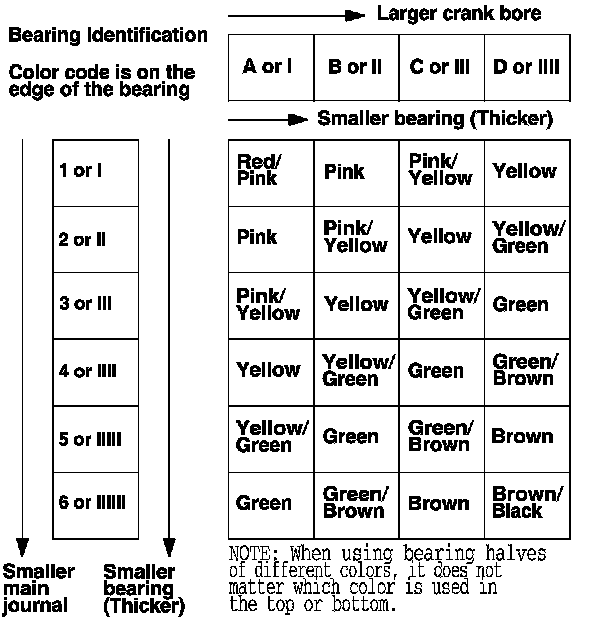

Bearing table
