Differential Temperature Sensor/Switch: Service and Repair

Rear Differential Fluid Temperature Sensor Replacement

1. Drain the differential fluid. Rear Differential Fluid Inspection and Replacement

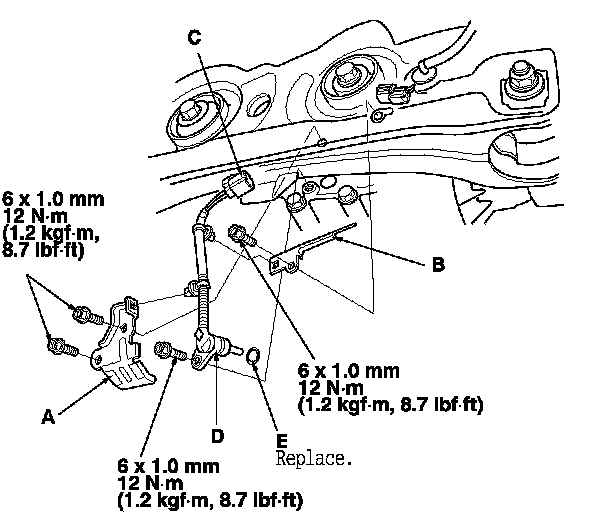

2. Remove the differential fluid temperature sensor cover (A) and the differential fluid temperature sensor harness bracket (B), then disconnect the differential fluid temperature sensor connector (C).

3. Remove the differential fluid temperature sensor (D).

4. Install the differential fluid temperature sensor with a new O-ring (E) in the reverse order of removal.

5. Refill the differential fluid. Rear Differential Fluid Inspection and Replacement
