Front Grille Replacement

Front Grille Replacement

NOTE:

- When removing components, use the trim tools or equivalent.

- Take care not to scratch the rear bumper and the body.

1. Remove the front bumper. Front Bumper

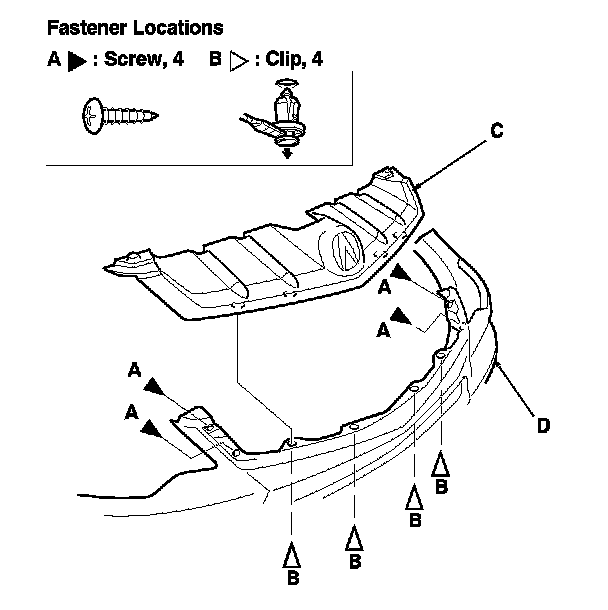

2. Remove the screws (A) and the clips (B). Then remove the front grille (C) from the front bumper (D) by pulling it out. Take care not to scratch the front bumper.






3. Remove the screw, then remove front emblem (A) from the front grille base (B).

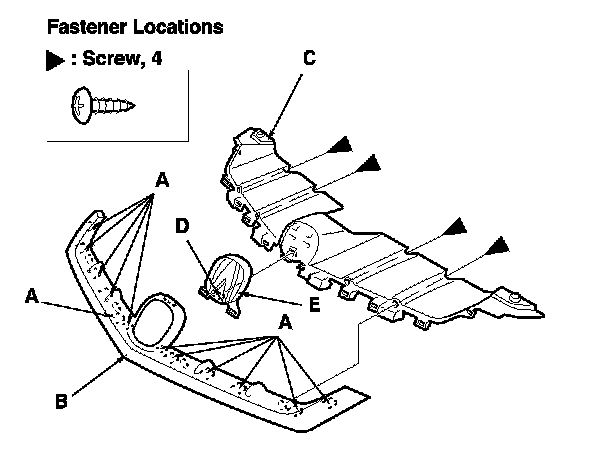

4. Remove the screws, then release the hooks (A) and remove the grille molding (B) from the front grille base (C).

5. If necessary, release the hook (D), and remove the front emblem base (E).

6. Install the grille in the reverse order of removal.
