Tightening Torques and Sequences
Automatic transmissionDrive plate
74 Nm (7.5 kgf-m, 54 ft lb)
Tighten in a crisscross pattern in at least two steps

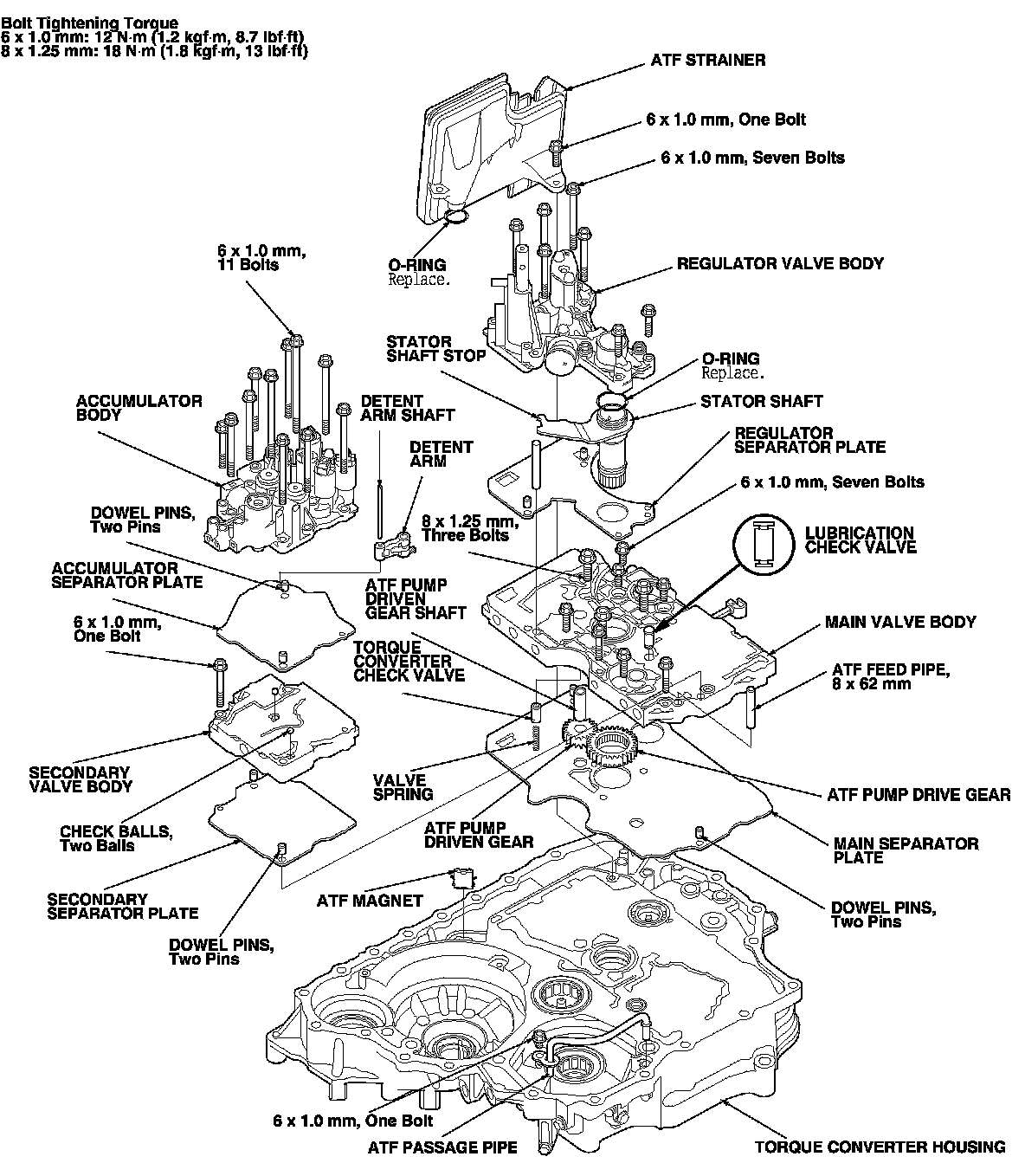

Exploded Views Automatic transmission reassembly

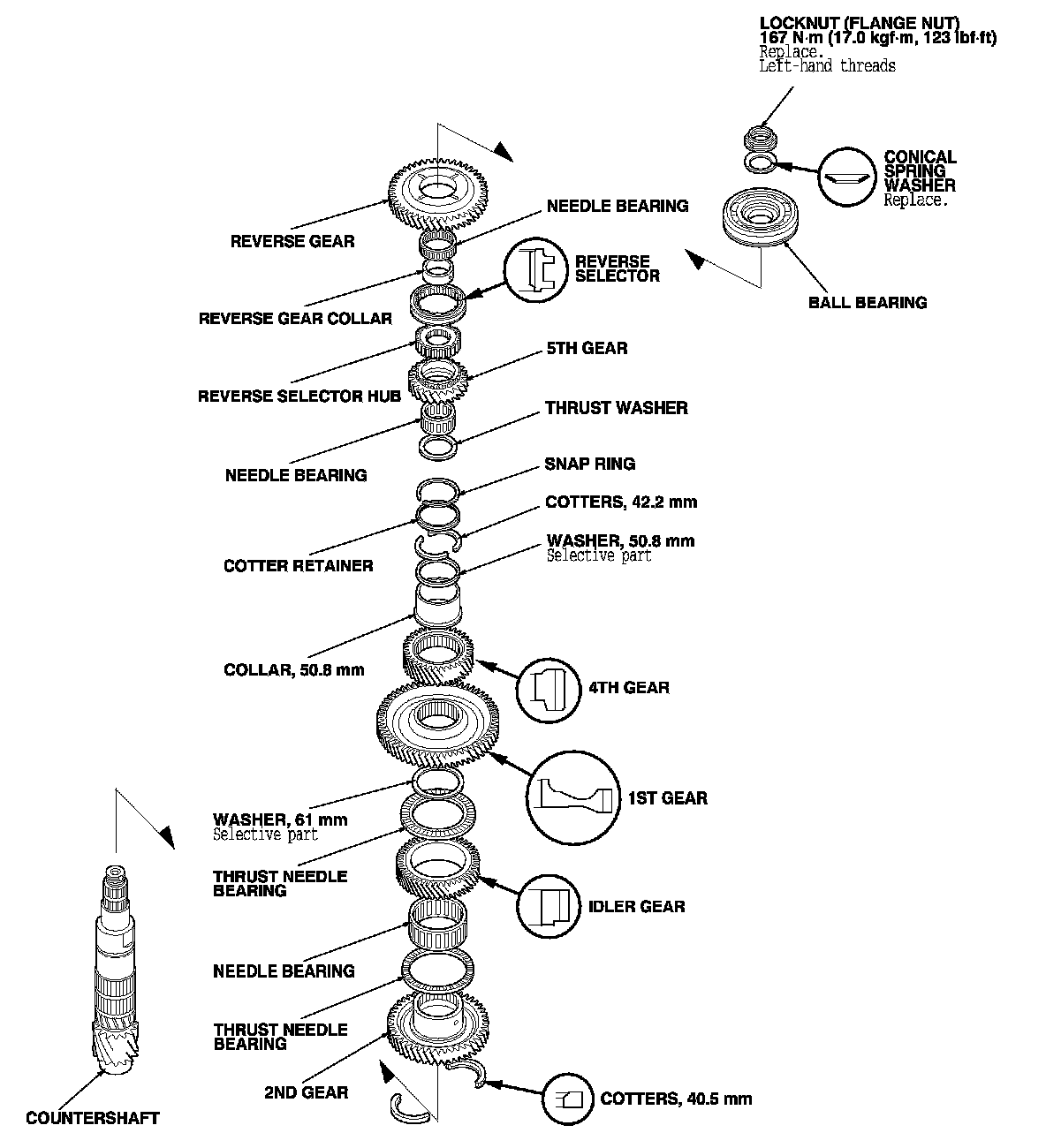

Countershaft disassembly

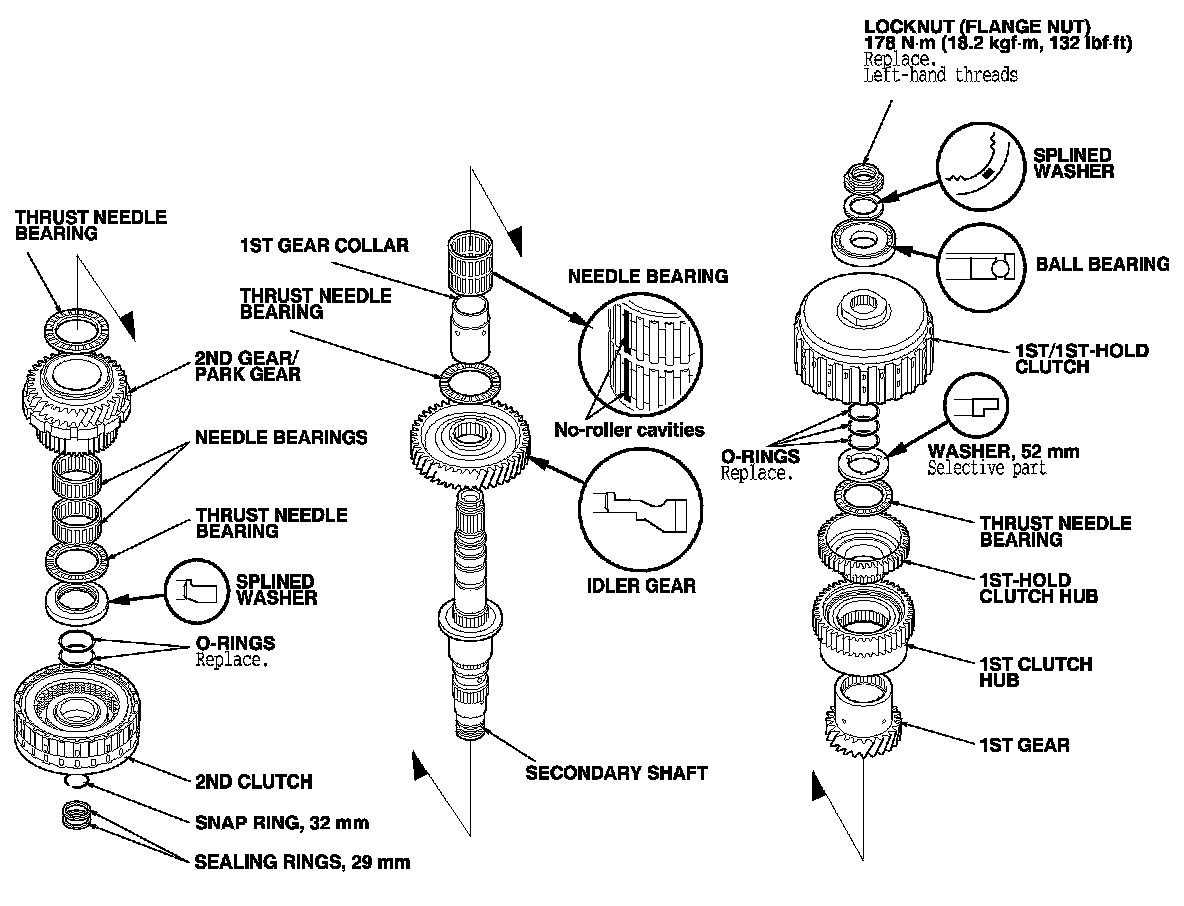

Secondary shaft disassembly
For information regarding Transmission Overhaul Specifications, please refer to Service and Repair, Overhaul.
Overhaul
