Removal and Replacement

Alternator Removal and Installation

Removal

1. Make sure you have the anti-theft code for the audio system and the navigation system (if equipped). Make sure the ignition switch to LOCK (0).

2. Disconnect the negative cable from the battery.

3. Remove the drive belt. Service and Repair

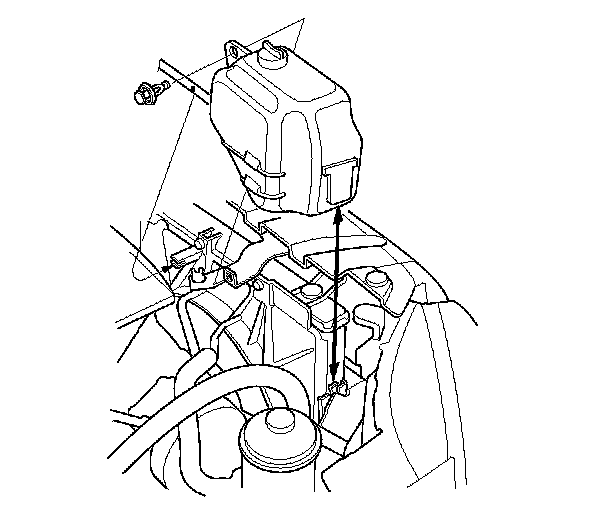

4. Remove the clip (A), then remove the coolant reservoir (B) from the holder.

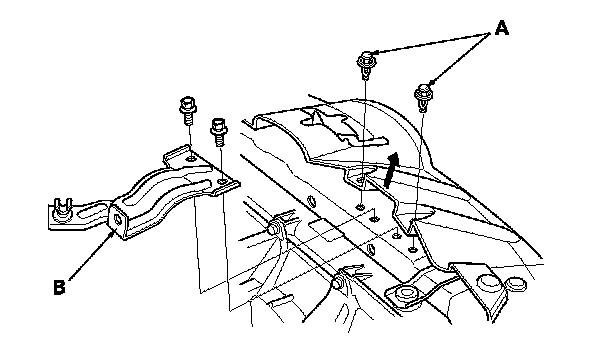

5. Remove the clips (A), then remove the support rod clamp bracket (B).

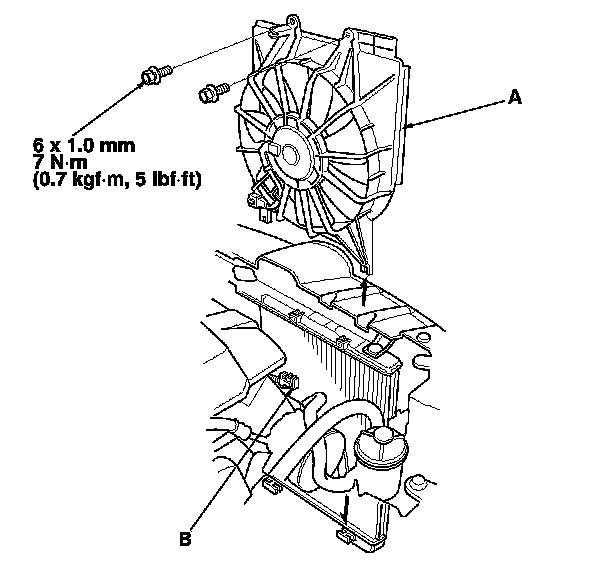

6. Disconnect the A/C condenser fan motor connector (A), then remove the A/C condenser fan shroud assembly (B).

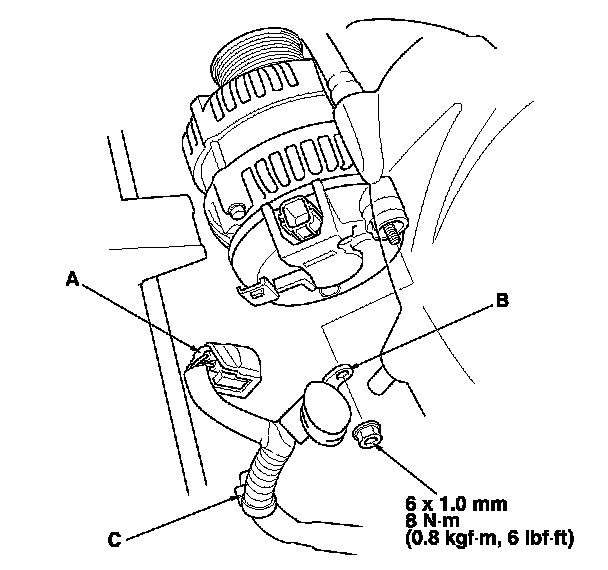

7. Disconnect the alternator connector (A) and BLK wire (B), then remove the harness clamp (C) from the alternator.

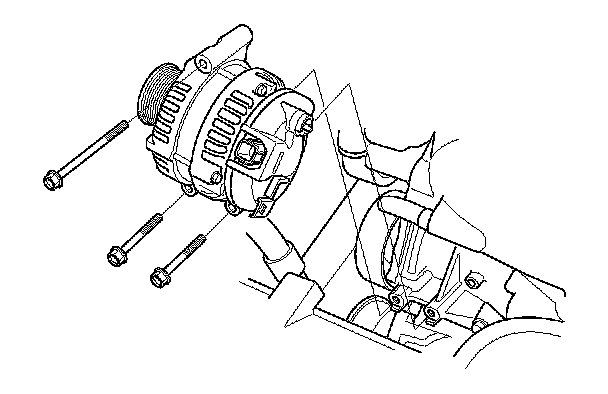

8. Remove the alternator.






Installation

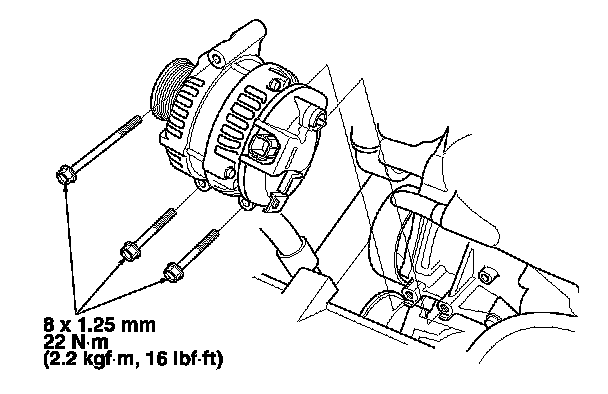

1. Install the alternator.

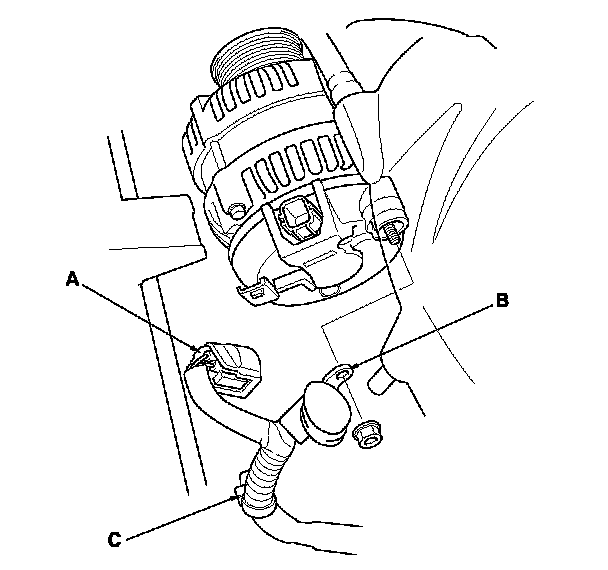

2. Connect the alternator connector (A) and BLK wire (B), then install the harness clamp (C) to the alternator.






3. Install the A/C condenser fan shroud assembly (A), then connect the A/C condenser fan motor connector (B).






4. Install the support rod clamp bracket (A), then install the clips (B).

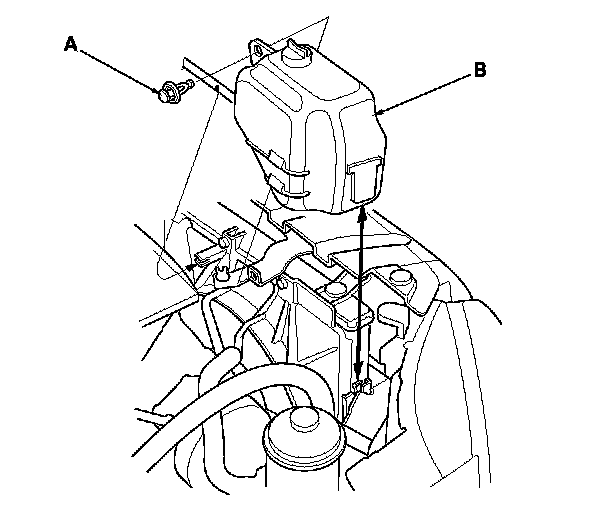

5. Install the coolant reservoir.

6. Install the drive belt. Service and Repair

7. Connect the negative cable to the battery.

8. Enter the anti-theft code for the audio system and the navigation system (if equipped).

9. Set the clock (on vehicles without navigation).
