Power Window Switch: Service and Repair




Power Window Switch Replacement

Driver's

1. Remove the driver's door panel. Front Door Panel Removal/Installation

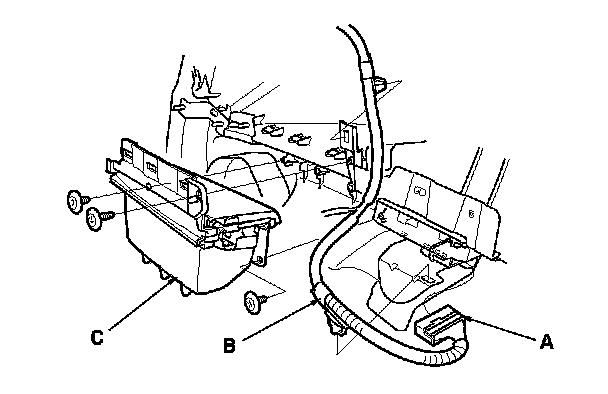

2. Disconnect the 22P connector (A) from the power window master switch.

3. Remove the driver's door subharness (B) from the power window master switch.

4. Remove the three screws from the door panel, then pull up on the door pocket (C) to release the clips.






5. Remove the three screws and the power window master switch (A) from the door panel.

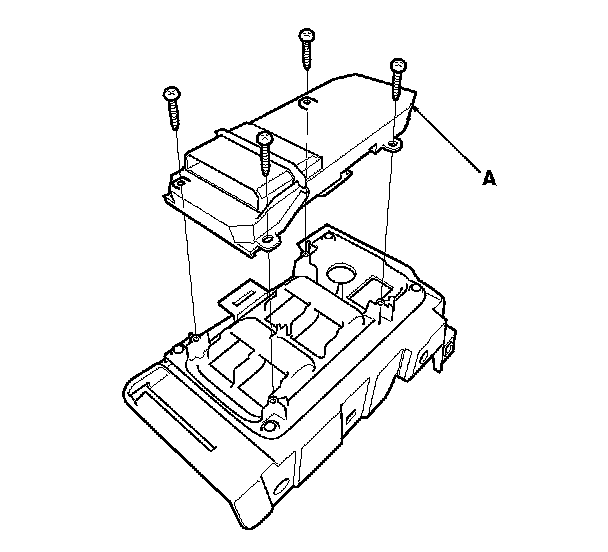

6. Remove the four screws and the power window master switch (A).

7. Install the switch in the reverse order of removal.

8. After replacement, reset the power window control unit. Testing and Inspection






Front passenger's

1. Removal the front passenger's door panel. Front Door Panel Removal/Installation

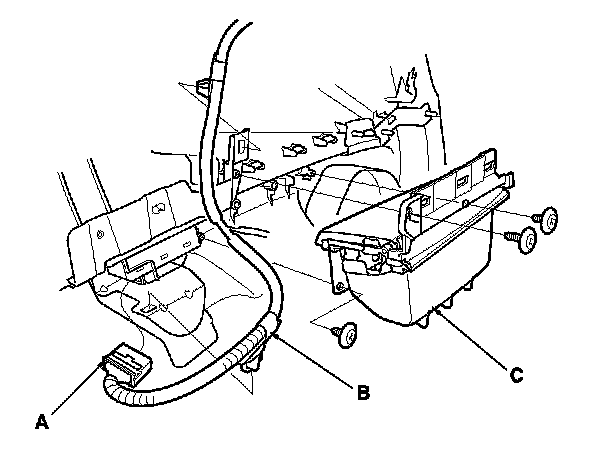

2. Disconnect the 14P connector (A) from the power window switch.

3. Remove the front passenger's door subharness (B) from the power window switch.

4. Remove the three screws from the door panel, then pull up on the door pocket (C) to release the clips.






5. Remove the three screws and the power window switch (A) from the door panel.

6. Remove the four screws and the power window switch.

7. Install the switch in the reverse order of removal.

8. After replacement, reset the power window control unit. Testing and Inspection






Rear passenger's

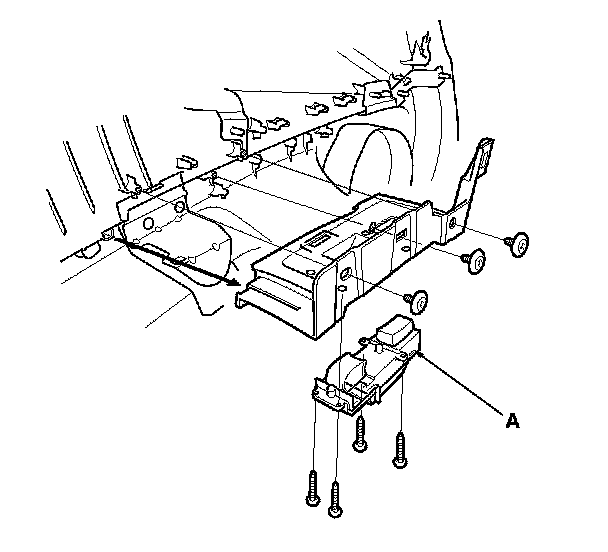

1. Removal the door panel. Rear Door Panel Removal/Installation

2. Disconnect the 14P connector from the power window switch (A).

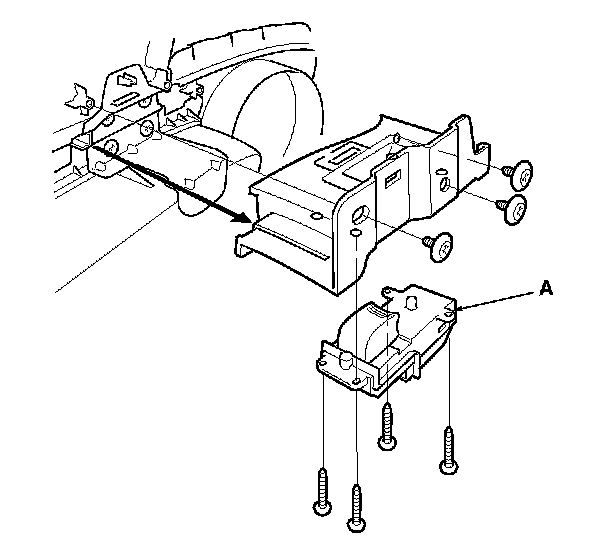

3. Remove the screws and the power window switch from the door panel.

4. Remove the four screws and the power window switch.

5. Install the switch in the reverse order of removal.
