Crankshaft Main Bearing

Crankshaft bearing Specifications

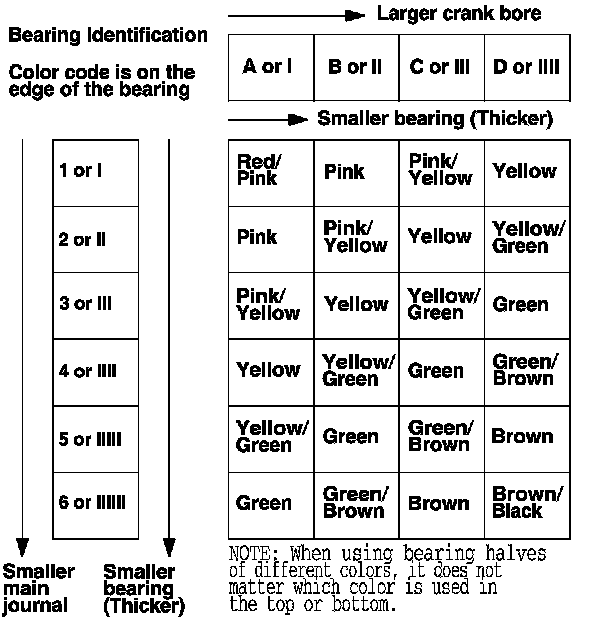

Crankshaft bearing

Cap bolts 74 Nm (7.5 kgf-m, 54 ft lb)
Side bolts 49 Nm (5.0 kgf-m, 36 ft lb)

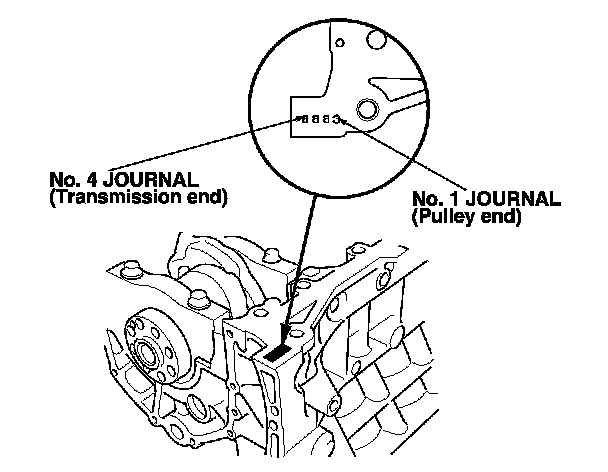

Crankshaft Bore Code Location

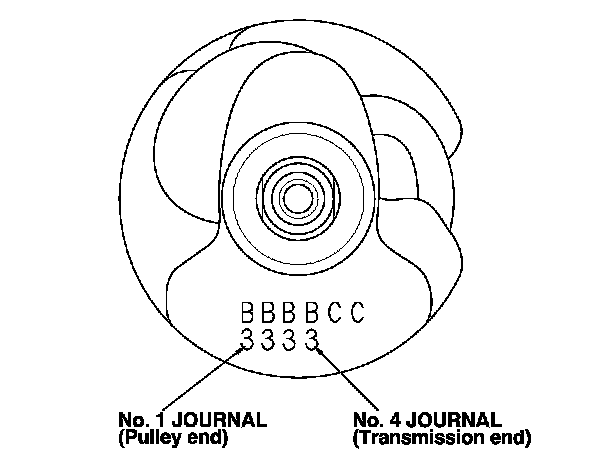

Main Journal Code Locations (Numbers or Bars)
