HFL Switch Replacement

HFL Switch Replacement

SRS components are located in this area. Review the SRS component location Locations, and the precautions and procedures Service and Repair before doing repairs or service.

1. Remove these items:

- Driver's airbag Driver's Airbag Replacement.
- Steering wheel Steering Wheel Removal.
- Paddle shifter Paddle Shifter Replacement.

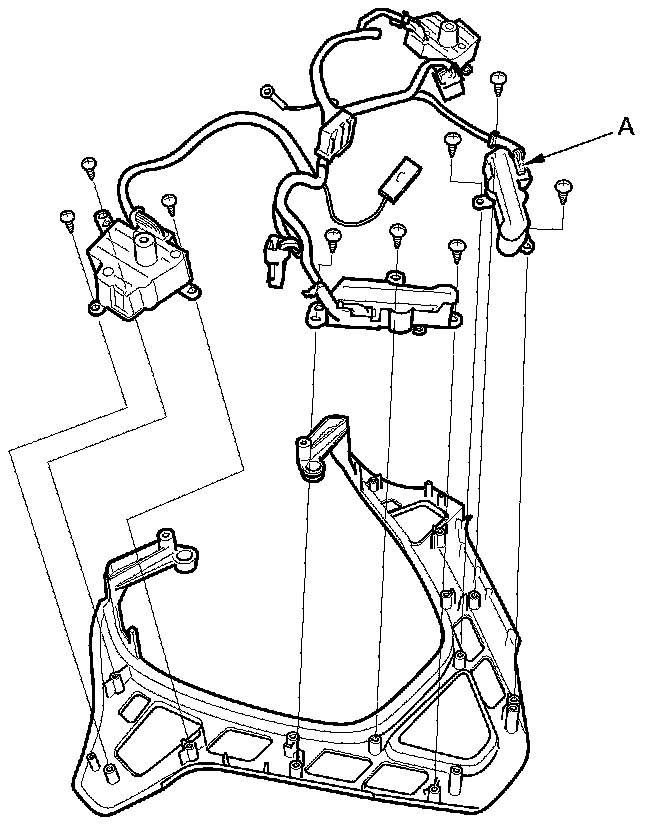

2. Remove the screws and the HFL switch (A).

3. Install the HFL switch in the reverse order of removal.
