Air Register: Service and Repair




Dashboard Side Vent Removal/Installation

NOTE: Take care not to scratch the dashboard or the related parts.

1. For the left side outlet: Remove the driver's switch panel Dashboard Driver's Switch Panel Removal/Installation.

For the right side outlet: Disconnect the glove box damper from the pivot on the glove box. While holding the glove box, release the glove box stop on each side from the dashboard by pushing them in.

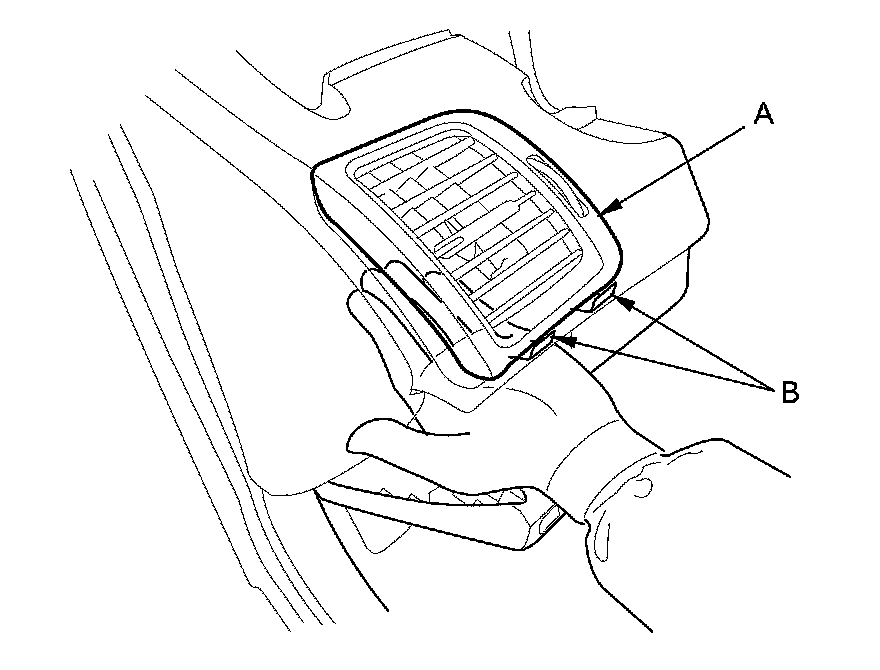

2. Push the back of the dashboard side vent (A) by hand from the driver's switch panel or glove box opening to release the hooks (B) on the side vent. Gently pull out the side vent to remove it.





3. Install the side vent in the reverse order of removal, and push the hooks into place securely.
