Horn: Service and Repair




Horn Test/Replacement

1. Remove the front bumper Front Bumper Removal / Installation.

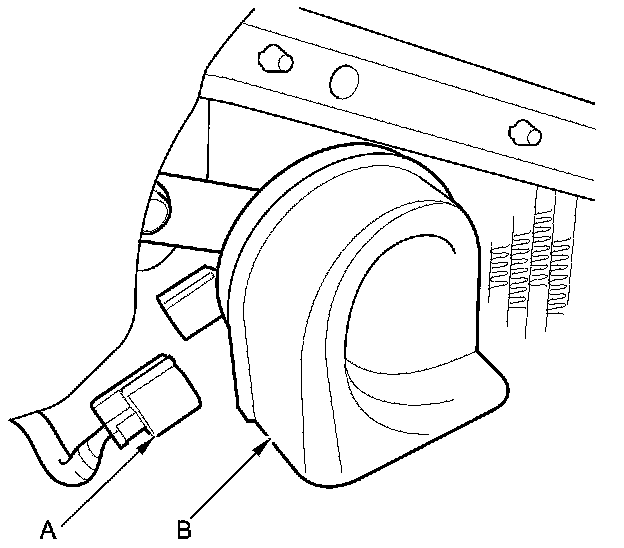

2. Disconnect the 1P connector (A) from each horn (B).

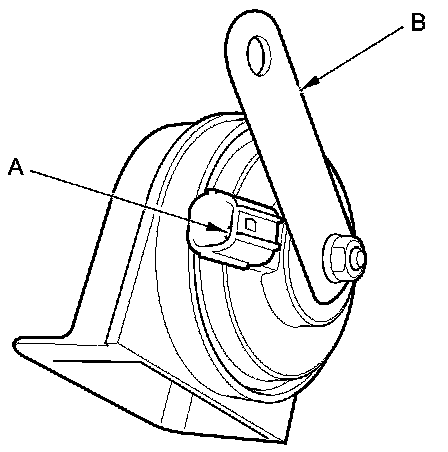

3. Test the horn by connecting battery power to the terminal (A) and grounding the bracket (B). The horn should sound.





4. If it fails to sound, replace it.
