Driver/Vehicle Information Display: Service and Repair

Multi-information Display Select/Reset/Information Switch Test/Replacement

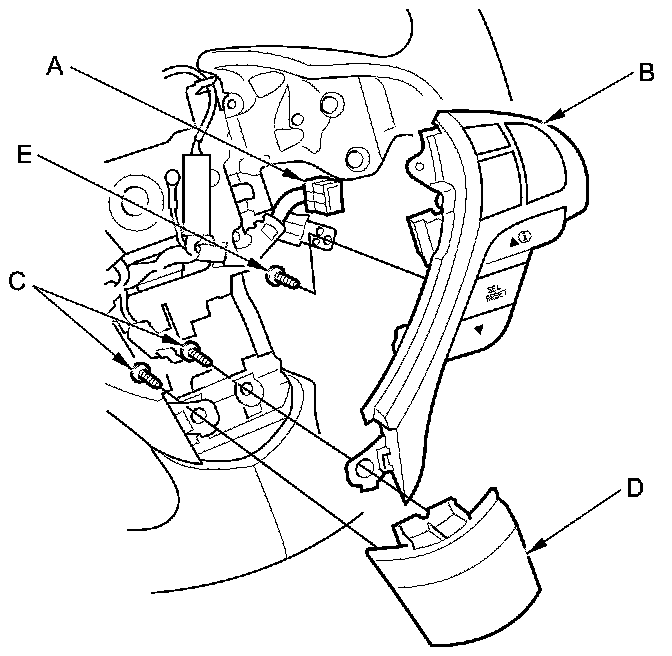

1. Remove the steering wheel Steering Wheel Removal.

2. Remove the paddle shifter (+) (upshift switch) Paddle Shifter Replacement.

3. Disconnect the 12P connector (A) from the select/reset/information switch (B).





4. Remove the screws (C), then pull out the center trim (D) from the steering wheel.

5. Remove the screw (E), then pull the select/reset/information switch from the steering wheel.

6. Measure the resistance between select/reset/information switch 12P connector terminals No. 4 and No. 11 in each switch position according to the table.









7. If the resistance is not as specified, replace the switch.

8. If the switch is OK, but there is a problem with the switch function, check the cable reel subharness and cable reel.
