Side Defogger Vent Trim Removal/Installation




Side Defogger Vent Trim Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Acura Tool and Equipment Program; call 888-424-6857

NOTE:

- Take care not to scratch the dashboard or the panels.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- The left side defogger vent trim is shown; the right side defogger vent trim is similar.

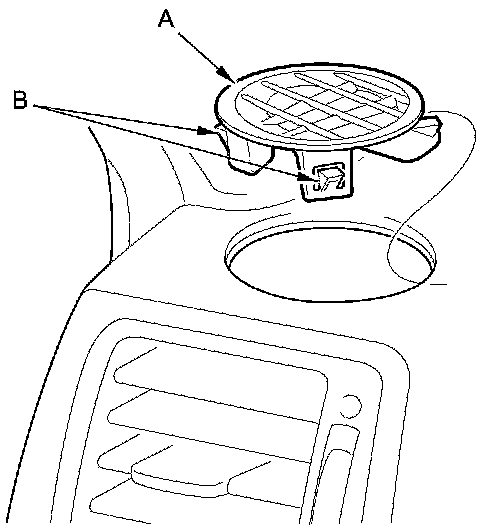

1. Insert the appropriate trim tool into a gap between the side defogger vent trim (A) and the dashboard, and pry on the hooks (B), then remove the trim.





2. Install the trim in the reverse order of removal, and push the hooks into place securely.
