Tail Lamp: Service and Repair

Taillight Replacement

1. Open the trunk lid, and remove the trunk side trim panel Interior Trim Removal/Installation - Trunk Area.

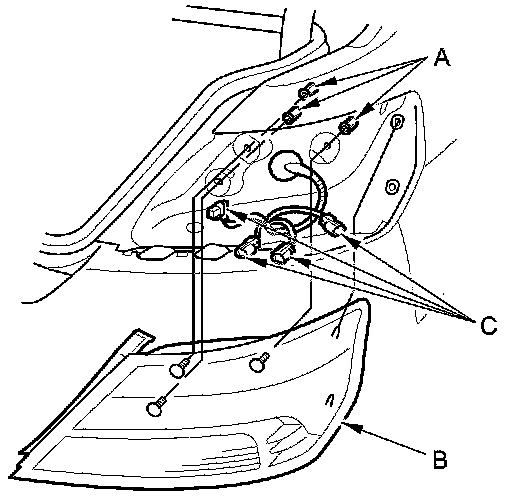

2. Remove the three special nuts (A) from the taillight unit.

3. Carefully pull out the taillight (B).

4. Disconnect the connectors (C) from the taillight.

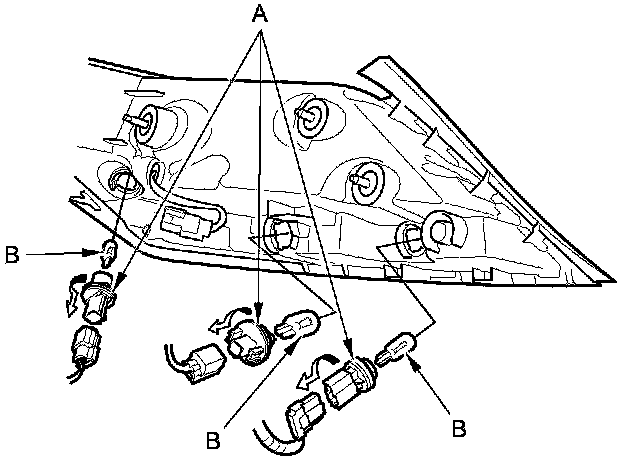

5. Turn the bulb sockets (A) 45 ° counterclockwise to remove the bulbs (B).

6. Install the light in the reverse order of removal.
