Leak Detection Solenoid: Service and Repair

EVAP Canister Vent Shut Valve Replacement

With SH-AWD

1. Remove the trunk front trim panel Interior Trim Removal/Installation - Trunk Area.

2. Remove the access panel (A) from the floor.

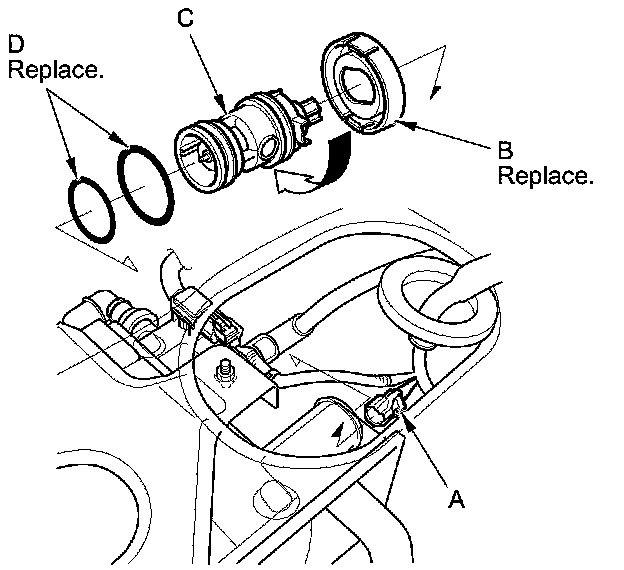

3. Disconnect the EVAP canister vent shut valve 2P connector (A).

4. Remove the cap (B).

5. Remove the EVAP canister vent shut valve (C).

6. Install the parts in the reverse order of removal with new O-rings (D) and a new cap.
