Wiper Blade: Service and Repair

Wiper Blade Replacement

1. Lift the wiper arms from the windshield.

NOTE: Lift the driver's side first.

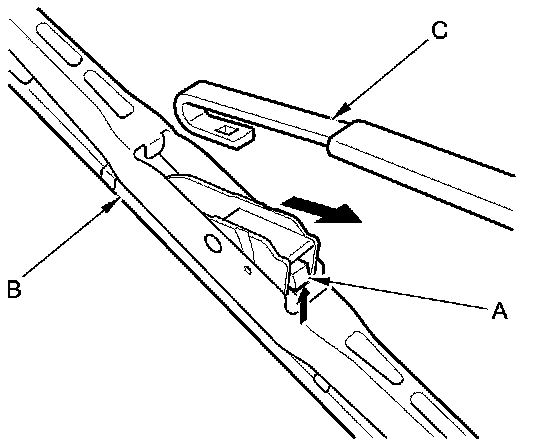

2. Press and hold the tab (A) and slide the wiper blade assembly (B) toward the tab to release it from the wiper arm (C).

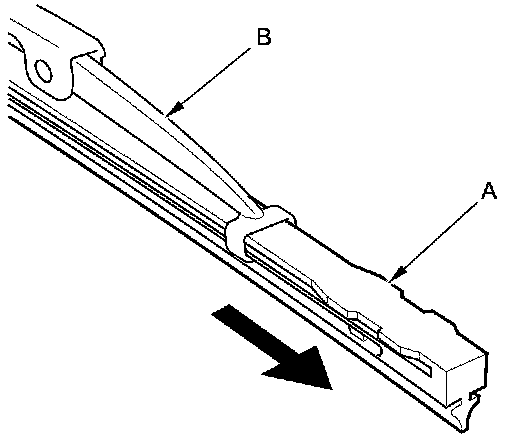

3. Slide the blade (A) out from the wiper blade holder (B).





4. Install a new blade to the wiper blade holder in the reverse order of removal.

5. Install the wiper blade assemblies onto the wiper arms in the reverse order of removal.

6. Check the wiper operation, if the blades slip, turn the wiper switch OFF, and reinstall the wiper blades securely.
