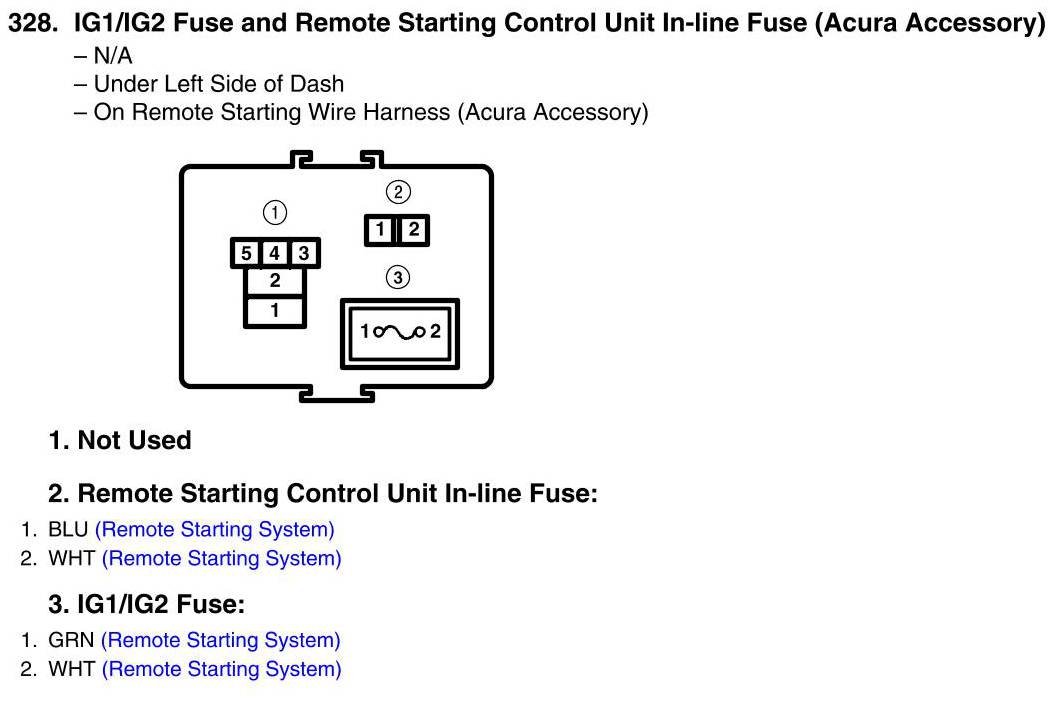

IG1/IG2 Fuse And Remote Starting Control Unit In-line Fuse Connector View (Acura Accessory)
IG1/IG2 Fuse And Remote Starting Control Unit In-line Fuse Connector View (Acura Accessory)
