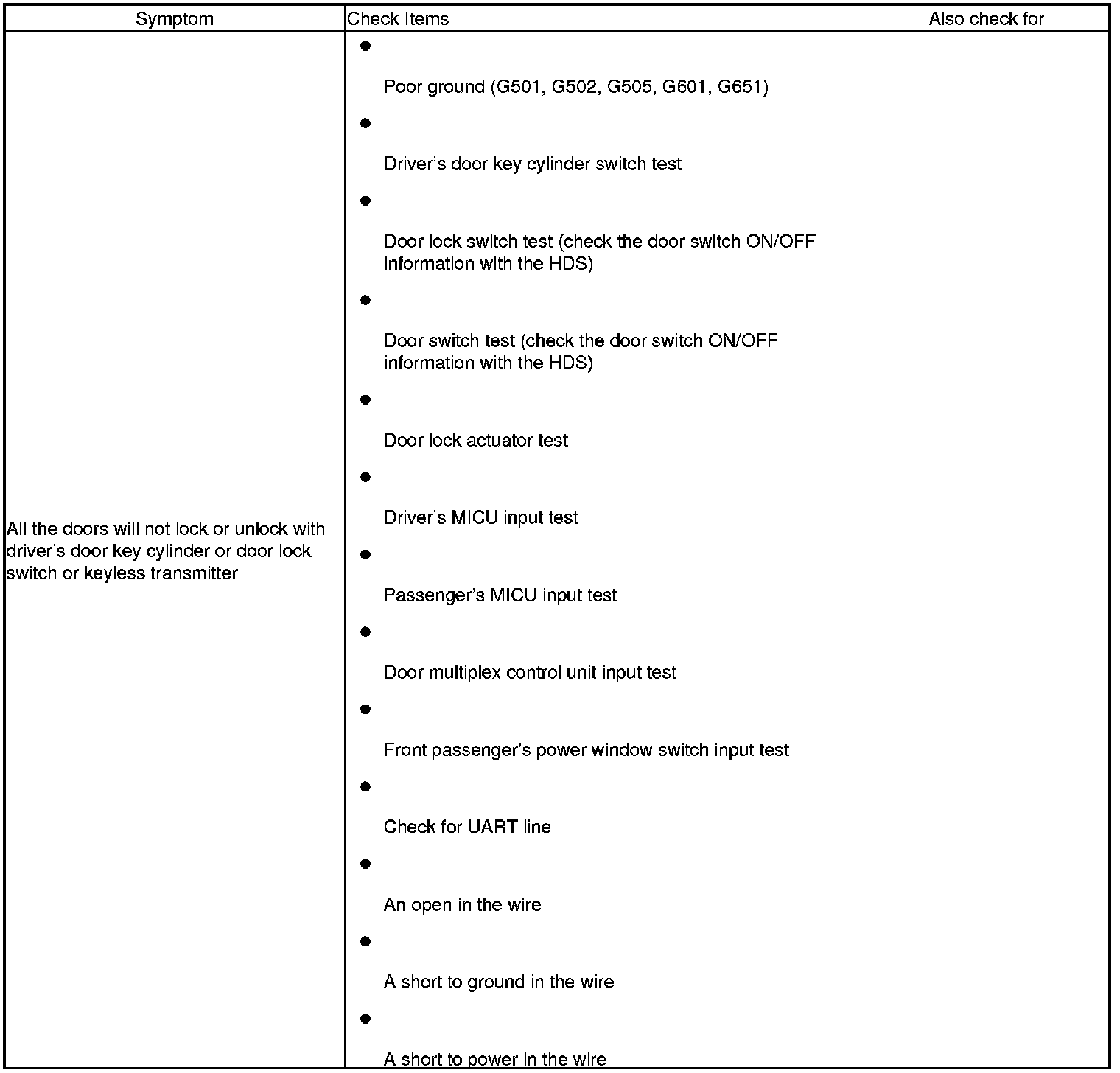

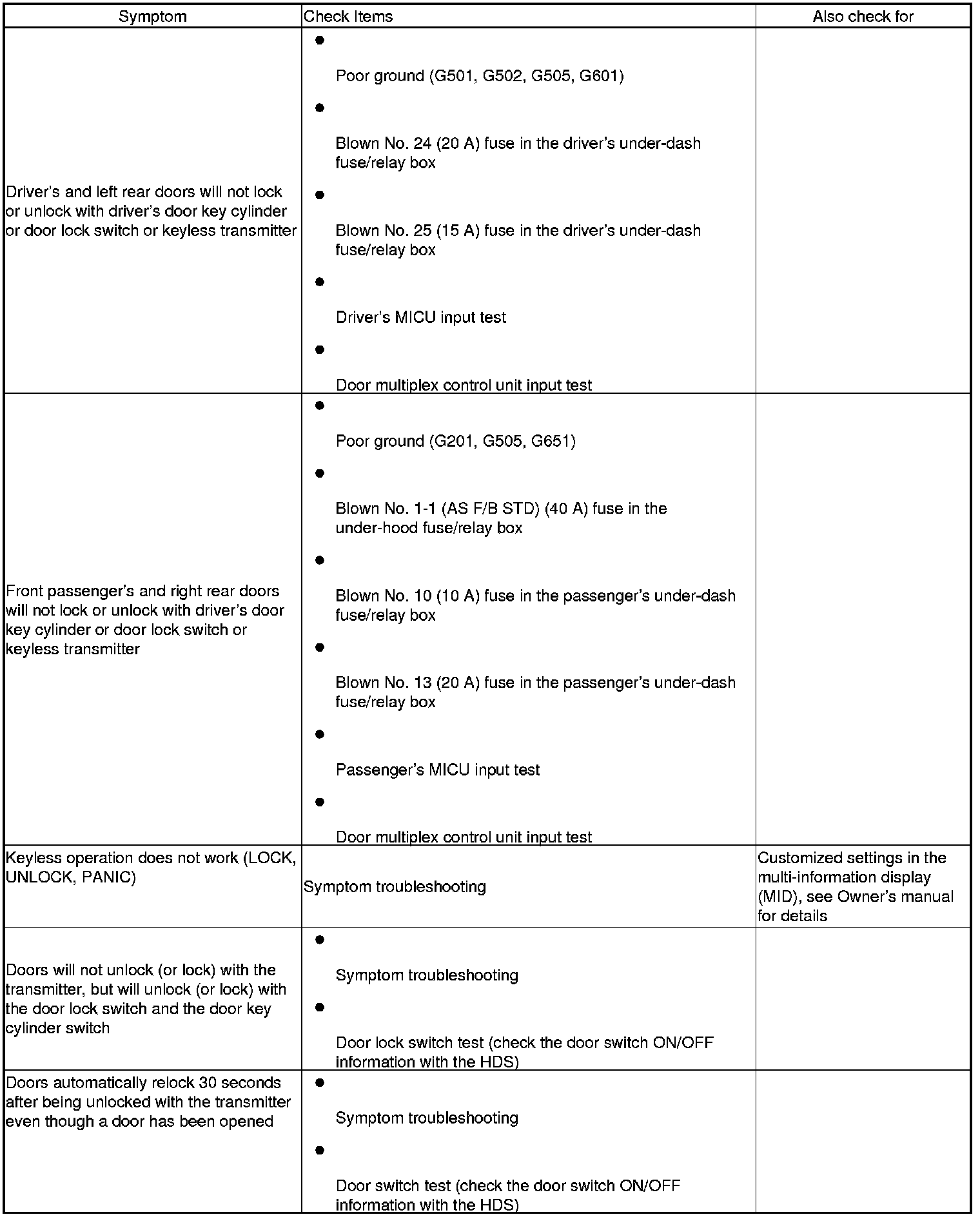

Keyless/Power Door Locks/Security System Symptom Troubleshooting Index

Keyless/Power Door Locks/Security System Symptom Troubleshooting Index

Power Door Locks/Keyless

1. Check for B-CAN DTCs. If any B-CAN DTCs are indicated, troubleshoot and resolve them first.

2. If the door lock system and the keyless operation do not work, troubleshoot the door locks first.

NOTE: The system does not function when the ignition switch is ON (II).
