Dashboard Drivers Pocket Removal/Installation

Dashboard Driver's Pocket Removal/Installation

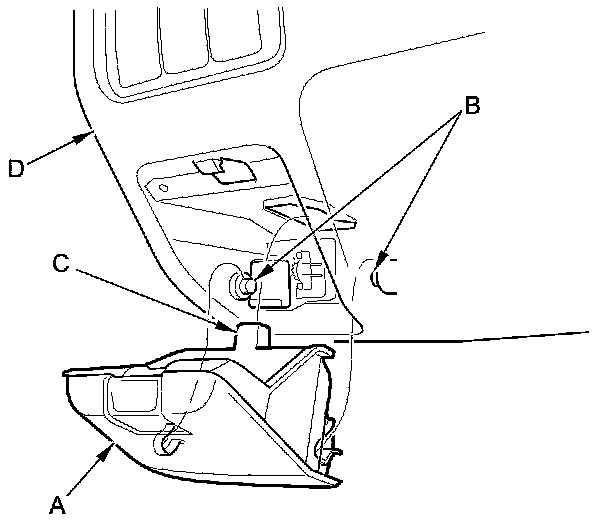

1. Remove the driver's pocket (A).

1. Release both pivots (B) by pulling back the bottom of the driver's pocket.

2. Lower the pocket to pull the stop area (C) off the driver's dashboard lower cover (D).





2. Install the pocket in the reverse order of removal.
