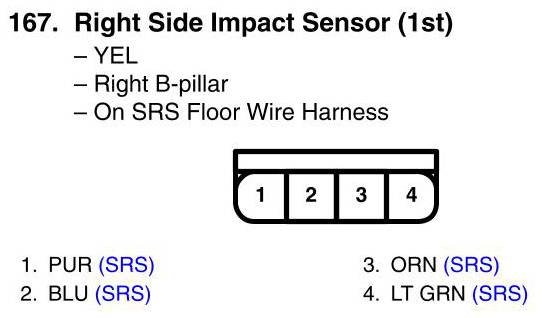

View 167 - Right Side Impact Sensor (1st) Connector View
View 167 - Right Side Impact Sensor (1st) Connector View
