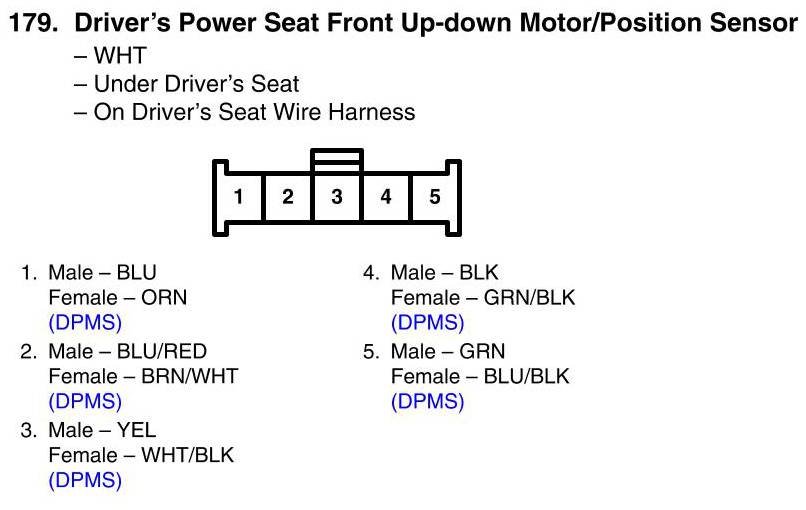

View 179 - Driver's Power Seat Front Up-Down Motor/Position Sensor Connector View
View 179 - Driver's Power Seat Front Up-Down Motor/Position Sensor Connector View
