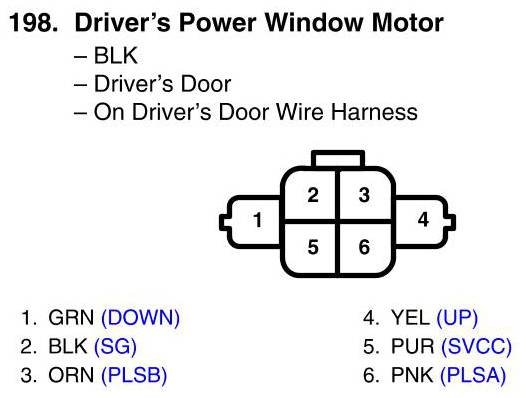

View 198 - Driver's Power Window Motor Connector View
View 198 - Driver's Power Window Motor Connector View
