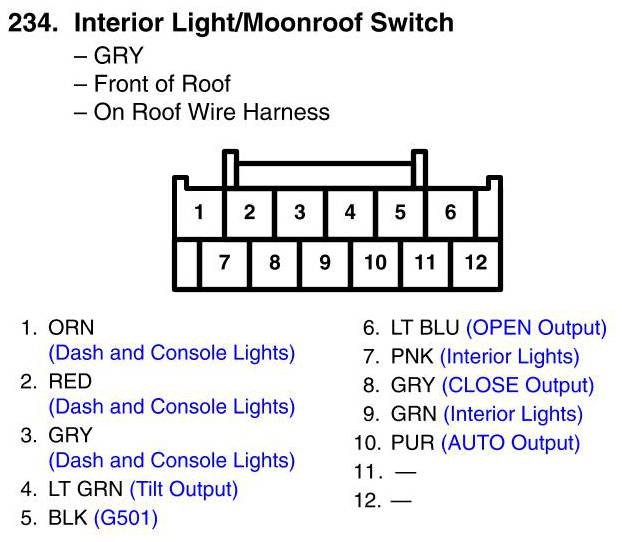

View 234 - Interior Light/Moonroof Switch Connector View
View 234 - Interior Light/Moonroof Switch Connector View
