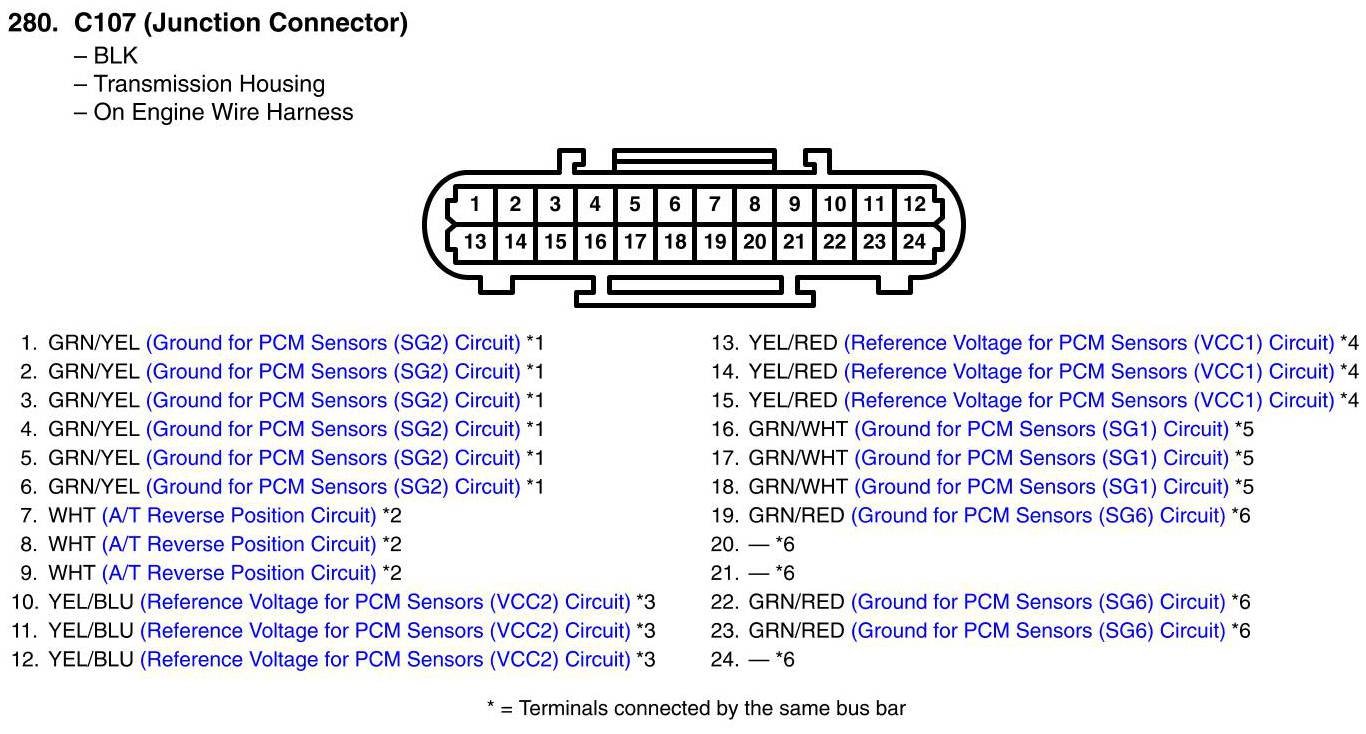

View 280 - C107 (Junction Connector) Connector View
View 280 - C107 (Junction Connector) Connector View
