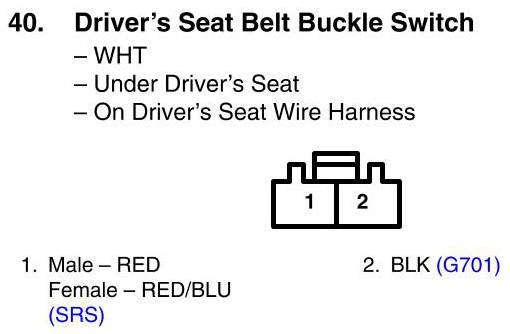

View 40 - Driver's Seat Belt Buckle Switch Connector View
View 40 - Driver's Seat Belt Buckle Switch Connector View
