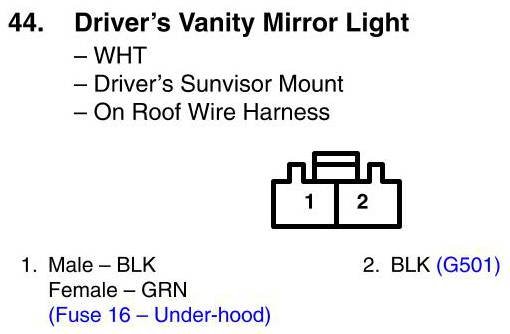

View 44 - Driver's Vanity Mirror Light Connector View
View 44 - Driver's Vanity Mirror Light Connector View
