Cylinder Head Inspection For Warpage

Cylinder Head Inspection for Warpage

1. Remove the cylinder head Cylinder Head Removal.

2. Inspect the camshaft Camshaft Inspection.

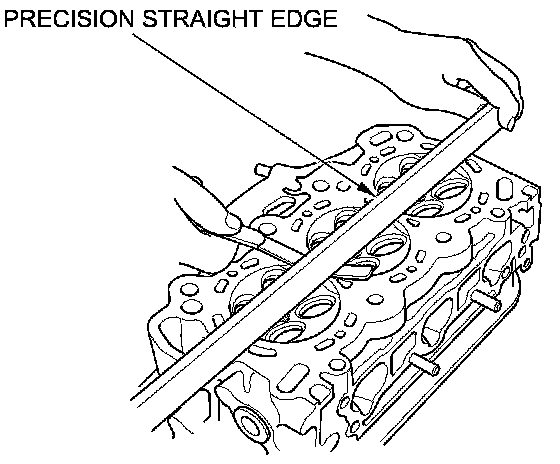

3. Check the cylinder head for warpage. Measure along the edges, and three ways across the center:

- If warpage is less than 0.05 mm (0.0020 in), cylinder head resurfacing is not required.
- Maximum resurface is limited to the cylinder head height standard as shown.
