Dashboard Center Pocket Removal/Installation

Dashboard Center Pocket Removal/Installation

NOTE: Take care not to scratch the dashboard or the related parts.

1. Remove these items:

- Center holder Dashboard Center Holder Removal/Installation
- Climate control unit Climate Control Unit Removal/Installation

2. Move the shift lever to 1st.

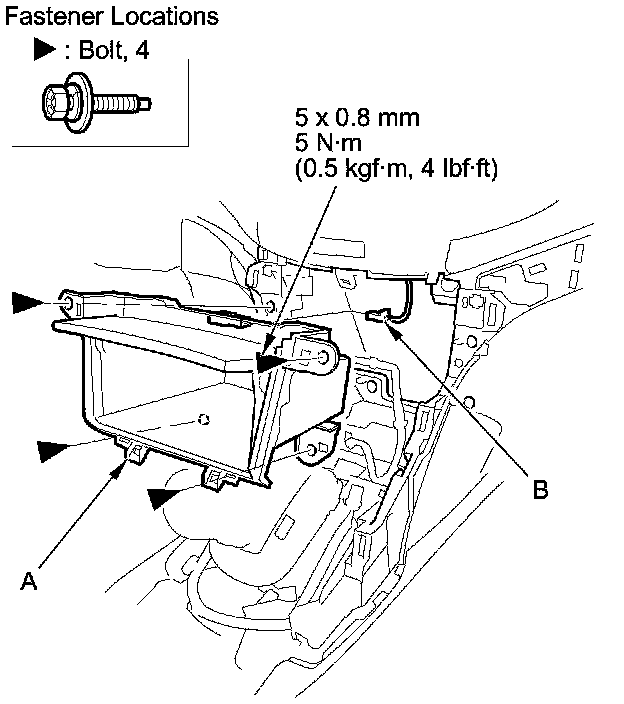

3. Remove the bolts securing the center pocket (A). Pull out the center pocket, and disconnect the center pocket light connector (B), then remove the center pocket.

NOTE: Take care not to scratch the A/T gear position indicator panel.






4. Install the pocket in the reverse order of removal.
