CKP Pulse Plate Replacement

CKP Pulse Plate Replacement

1. Remove the crankshaft from the engine block Crankshaft and Piston Removal.

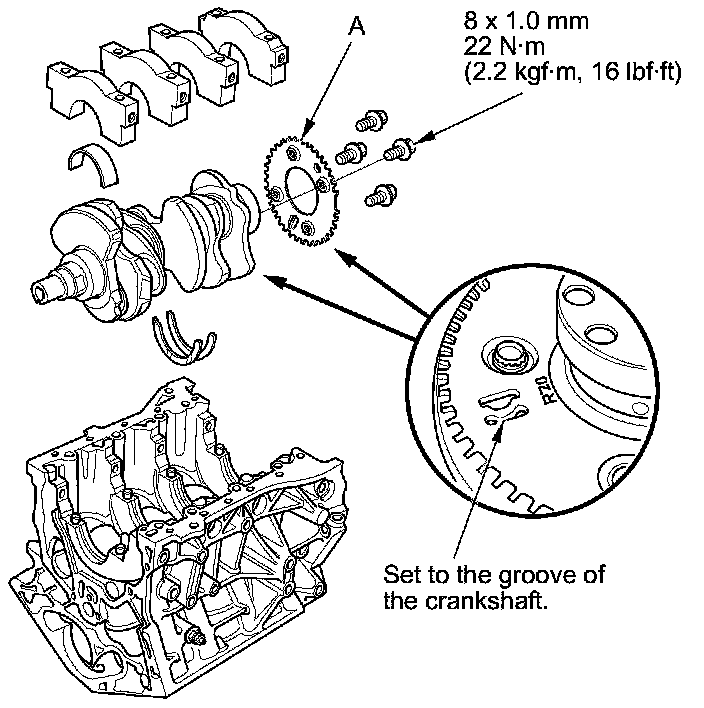

2. Remove the CKP pulse plate (A).

NOTE: Be careful not to damage the journals and the CKP pulse plate.





3. Install the CKP pulse plate in the reverse order of removal.

NOTE: When installing the crankshaft, refer to the crankshaft and piston installation procedure Crankshaft and Piston Installation.
