Axle Shaft Assembly

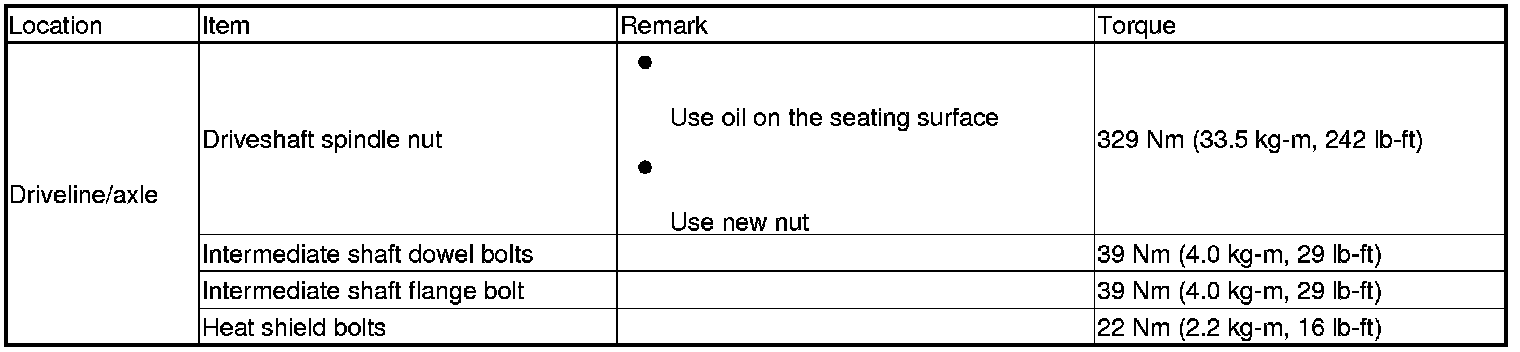

Torque Specifications

NOTE:
Refer to each repair section for the precautions and complete procedures.
Refer to each repair section for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the repair procedures closely for torque, sequence, and special steps.


Driveline/Axle
