Antenna, Radio
AM/FM/XM Antenna ReplacementSRS components are located in this area. Review the SRS component locations
Locations, and the precautions and procedures
Service and Repair before doing repairs or service.
1.
Remove the headliner
Service and Repair.
2.

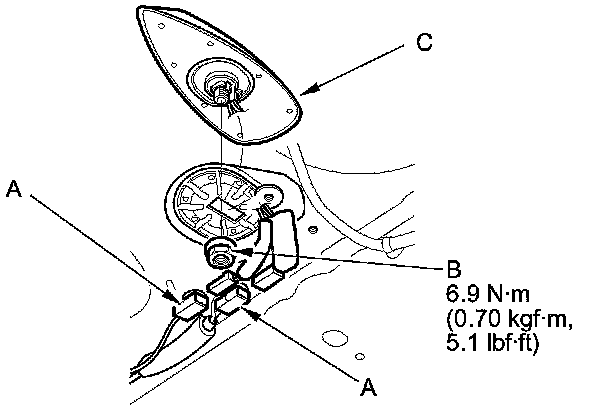

Disconnect the connectors (A).
3.
Remove the nut (B) and the AM/FM/XM antenna (C).
4.
Install the antenna in the reverse order of removal.
