Voice Activation Module: Testing and Inspection

HandsFreeLink Control Unit Input Test

1. Remove the HandsFreeLink control unit Service and Repair.

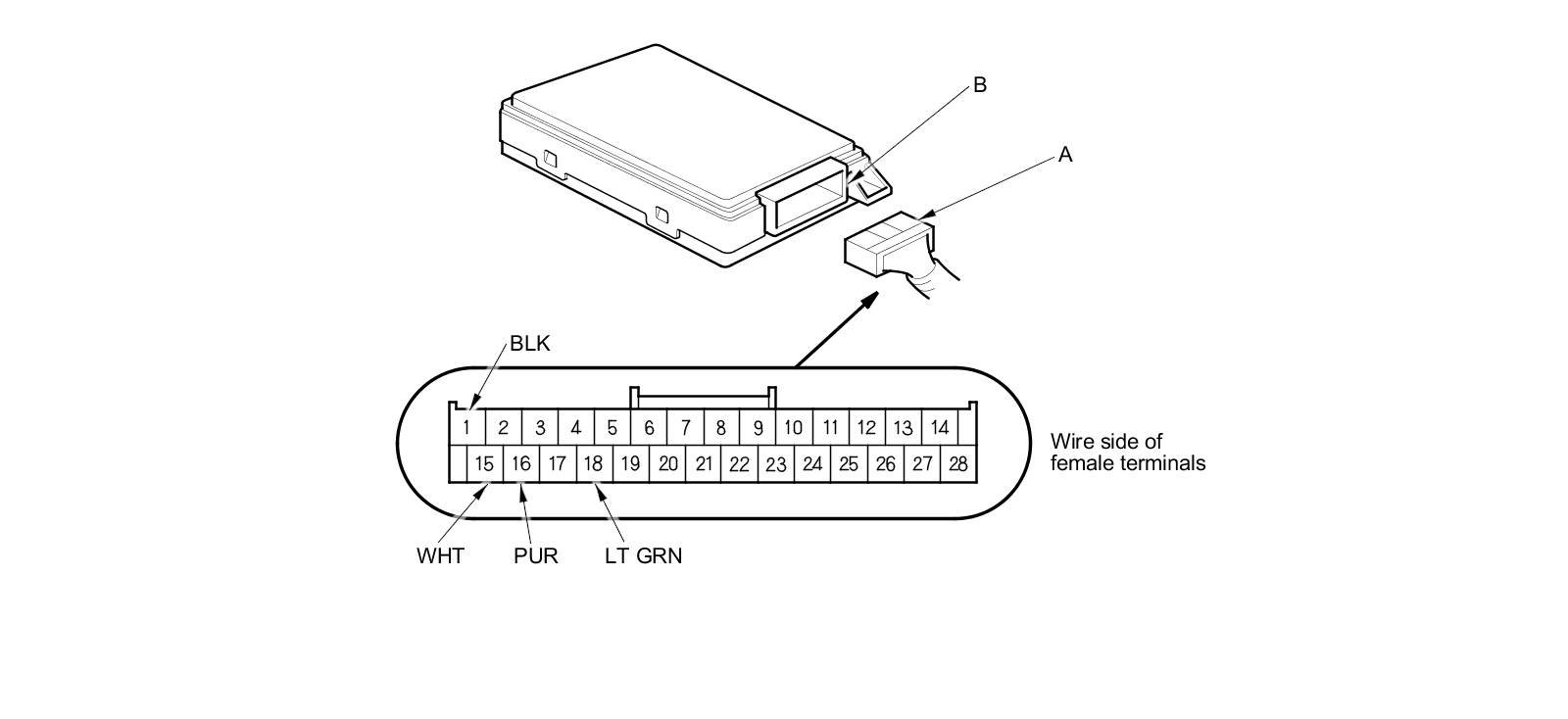

2. Inspect the connector (A) and socket (B) terminals for a good pin fit to be sure they are all making good contact.

- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 3.

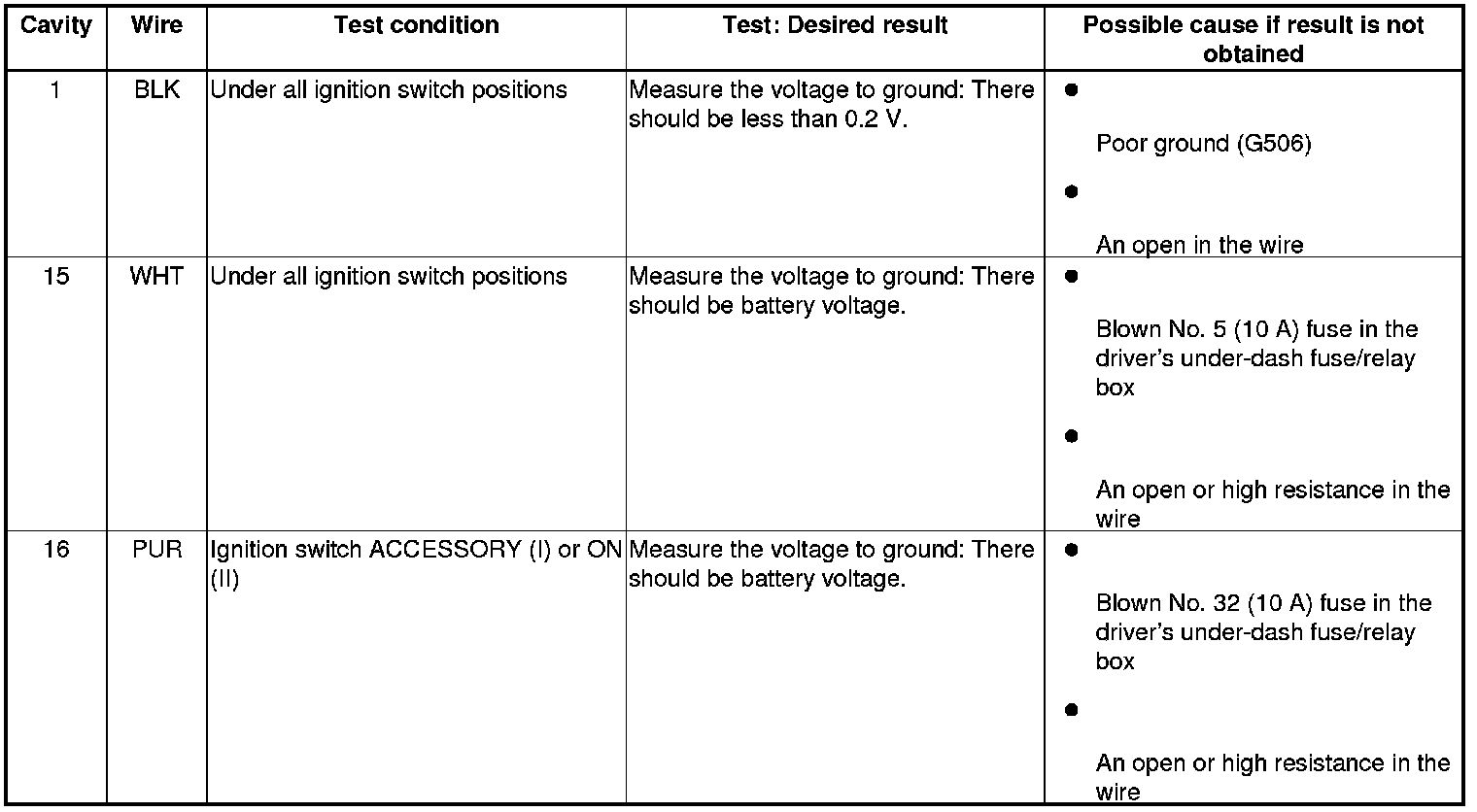

3. Reconnect the connector, and make these input tests at the connector.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 4.

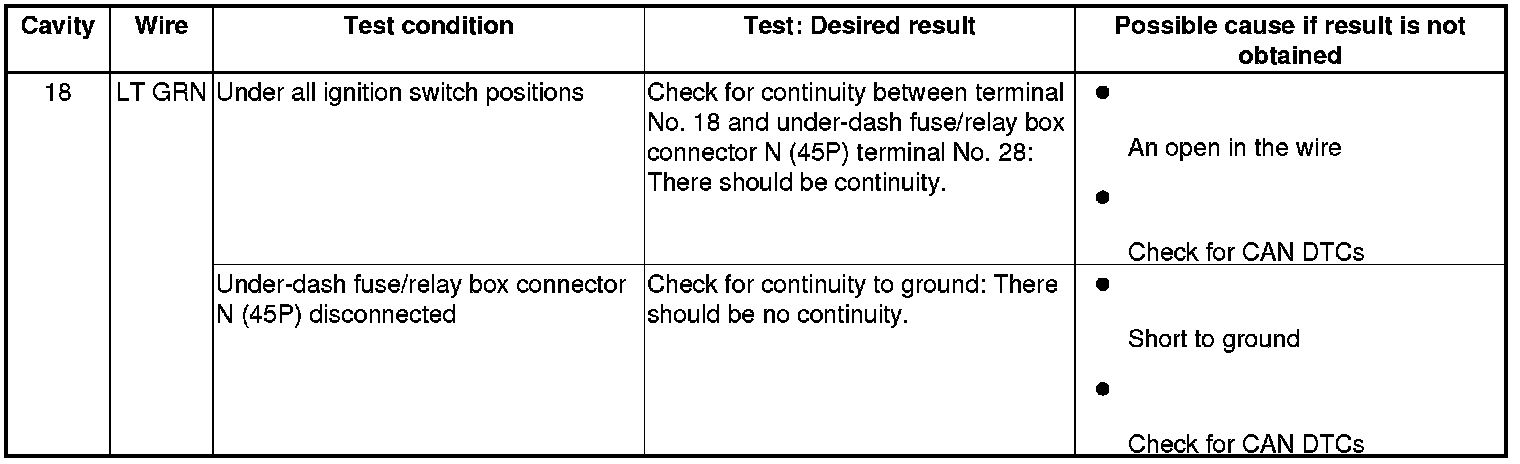

4. Disconnect the 28P connector again, and make this input test at the connector.

- If the test indicates a problem, find and correct the cause, then recheck the system.
- If the input test proves OK, the HandsFreeLink control unit must be faulty, replace it Service and Repair.
