Door Lock Knob Switch Test

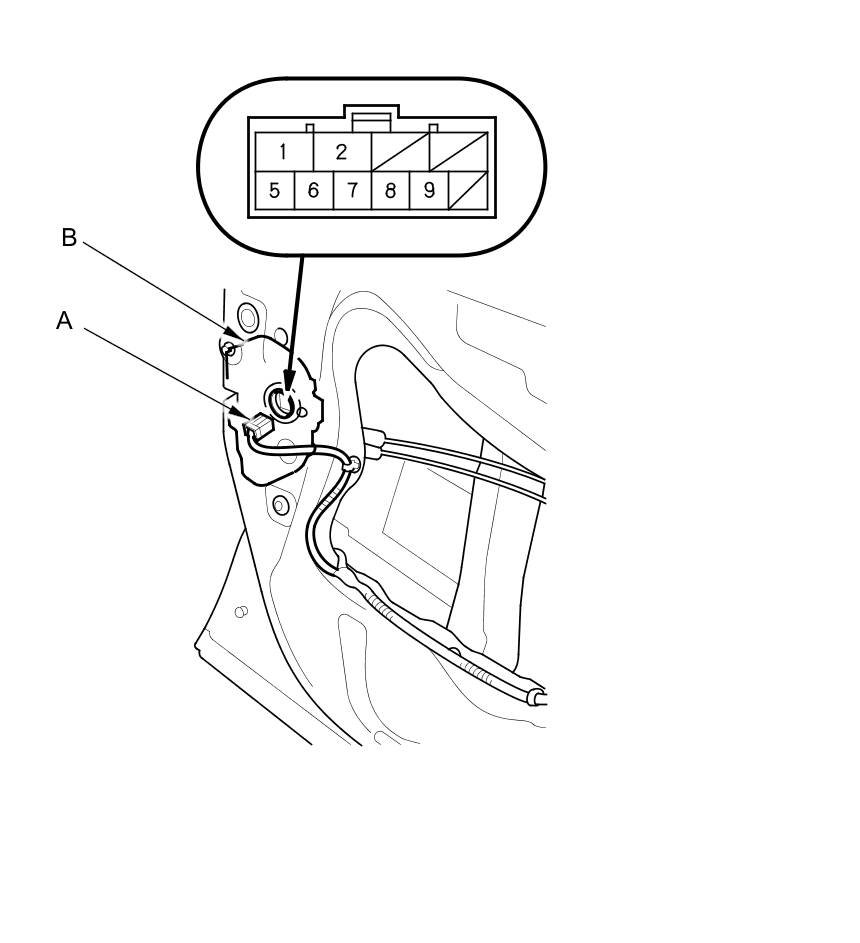

Door Lock Knob Switch Test

Driver's Door

1. Remove the driver's door panel Front Door Panel Removal/Installation.

2. Disconnect the 10P connector (A) from the actuator (B).





3. Check for continuity between the terminals.

- There should be continuity between terminals No. 6 and No. 5 when the door lock knob switch is in the LOCK position and no continuity when the switch is in the UNLOCK position.
- There should be continuity between terminals No. 7 and No. 5 when the door lock knob switch is in the UNLOCK position and no continuity when the switch is in the LOCK position.

4. If the continuity is not as specified, replace the driver's door latch assembly Service and Repair.

Passenger Doors

1. Remove the door panel.

- Front passenger's door Front Door Panel Removal/Installation
- Rear doors Rear Door Panel Removal/Installation

2. Disconnect the 10P connector (A) from the actuator (B).

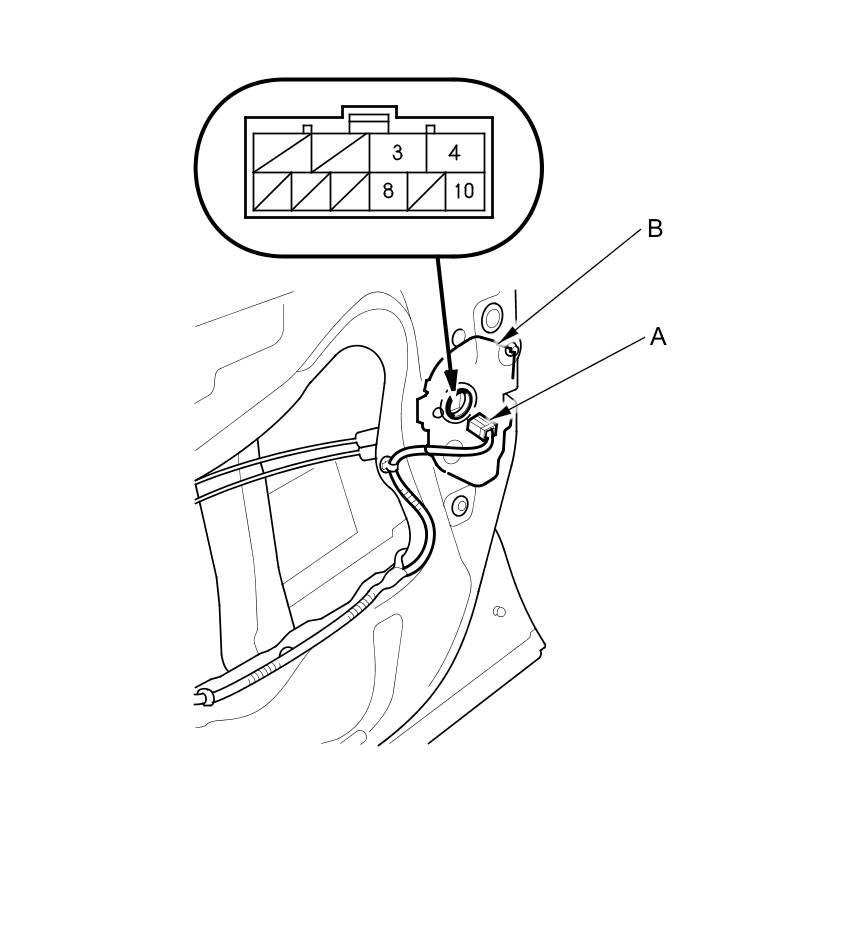

NOTE: The illustration shows the front passenger's door.





3. Check for continuity between the terminals.

There should be continuity between terminals No. 8[No. 7]and No. 10[No. 5]when the door lock knob switch is in the UNLOCK position and no continuity when the switch is in the LOCK position.

[ ]: Left rear door

4. If the continuity is not specified, replace the door latch assembly.

- Front passenger's door Service and Repair
- Rear doors Service and Repair
