Power Mirror Actuator Test

Power Mirror Actuator Test

NOTE: The power mirror actuator can be tested by using the HDS and following these steps:

- Select POWER SEAT/POWER MIRROR from the BODY ELECTRICAL SYSTEM SELECT menu.
- Select FUNCTIONAL TESTS, and then the appropriate power mirror function test.

1. Remove the door panel Front Door Panel Removal/Installation.

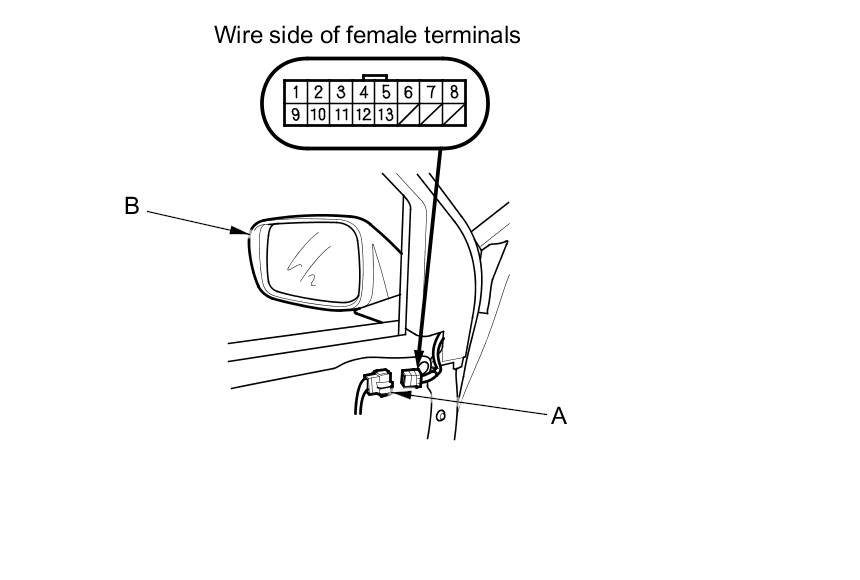

2. Disconnect the 16P connector (A) from the power mirror actuator (B).






3. Check actuator operation by connecting power and ground according to the table.

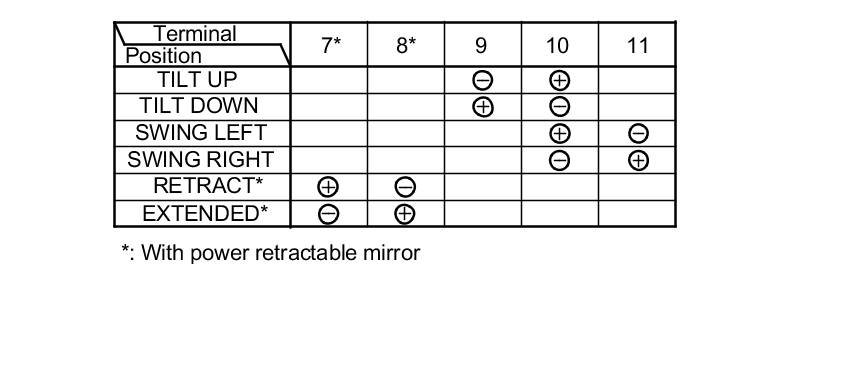

LEFT

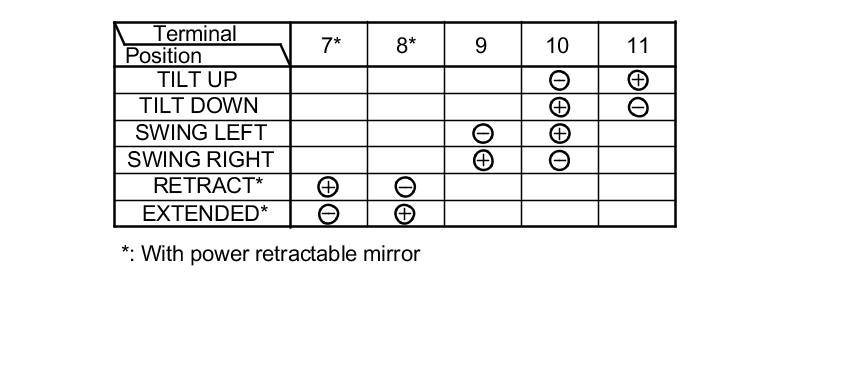

RIGHT





4. If the mirror fails to work properly, replace the mirror actuator.

Defogger Test

5. Measure the resistance between terminals No. 1 and No. 2 of the 16P connector. There should be less than 8 Ohms. If there is no continuity, check for an open circuit.
