Trunk / Liftgate Weatherstrip: Service and Repair

Tailgate Weatherstrip Replacement

1. Remove the left tailgate side trim .

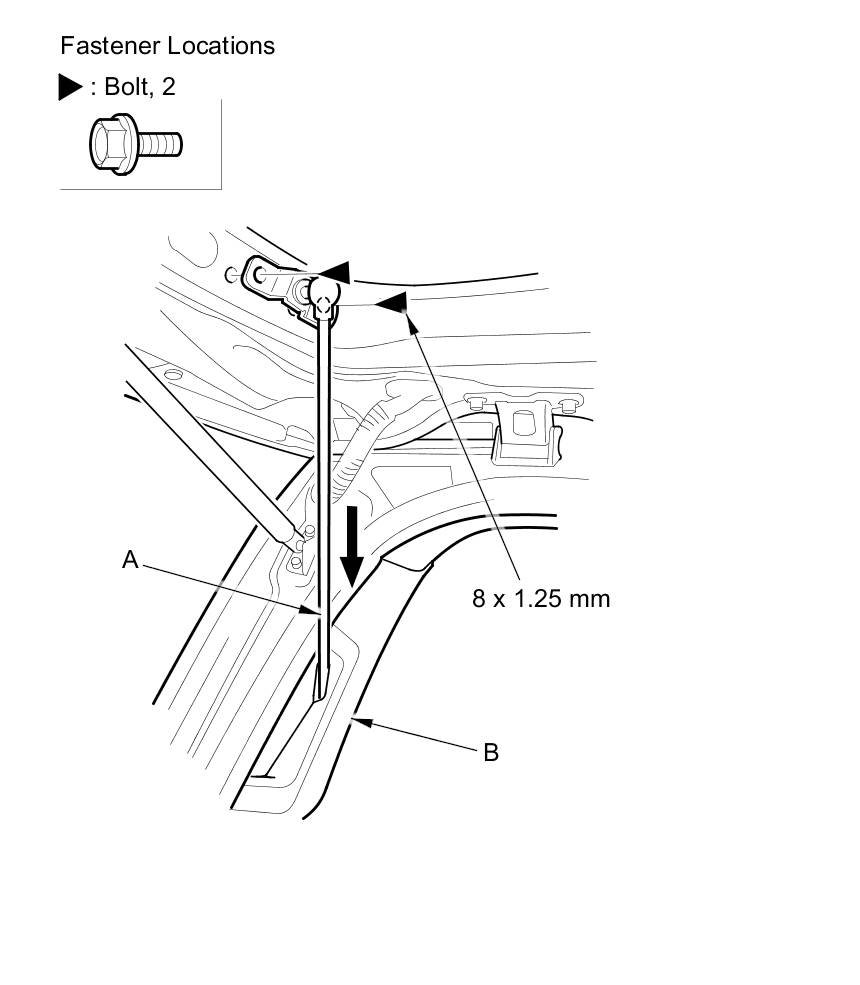

2. Remove the pivot bracket mounting bolts, then push the power tailgate rod (A) in the quarter pillar trim (B).

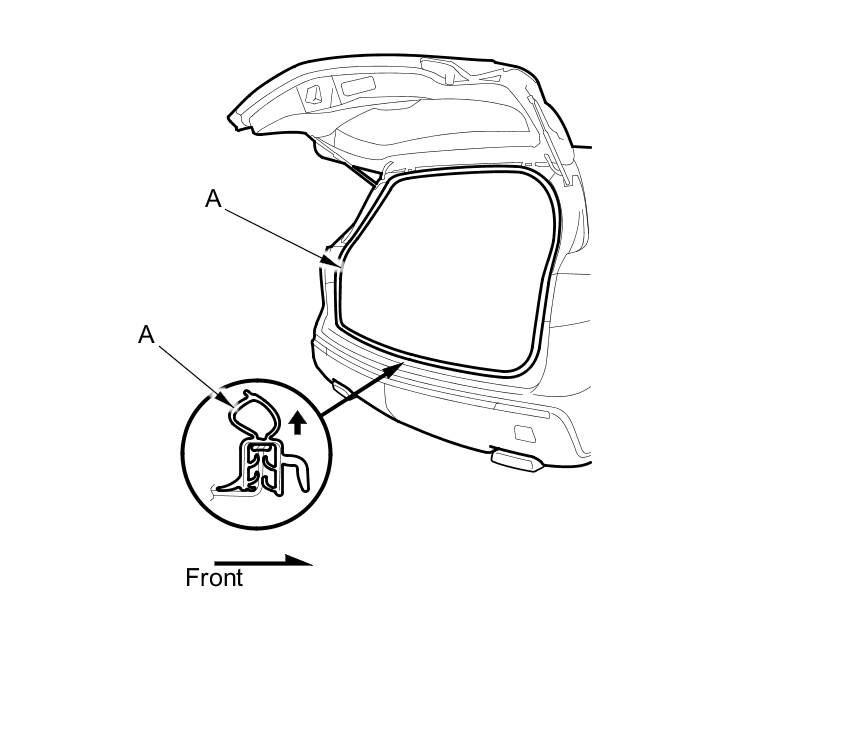

3. Remove the tailgate weatherstrip (A) by pulling it out.

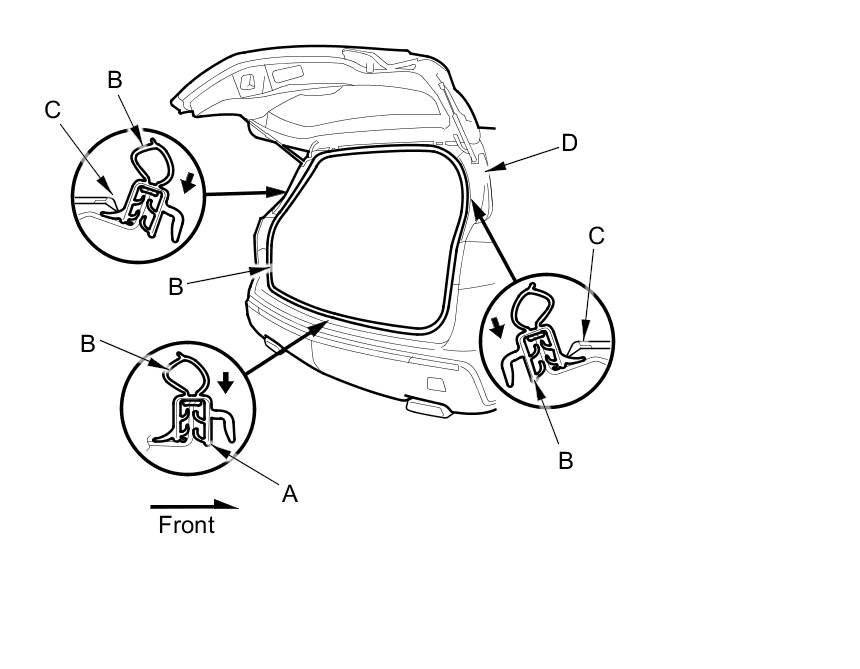

4. Locate the painted alignment mark (A) on the tailgate weatherstrip (B). Align the painted mark with the alignment notch in the center of the tailgate opening, and install the tailgate weatherstrip all the way around. Slip the weatherstrip in under the lips (C) of both rear gutter covers (D). Make sure there are no wrinkles in the weatherstrip.

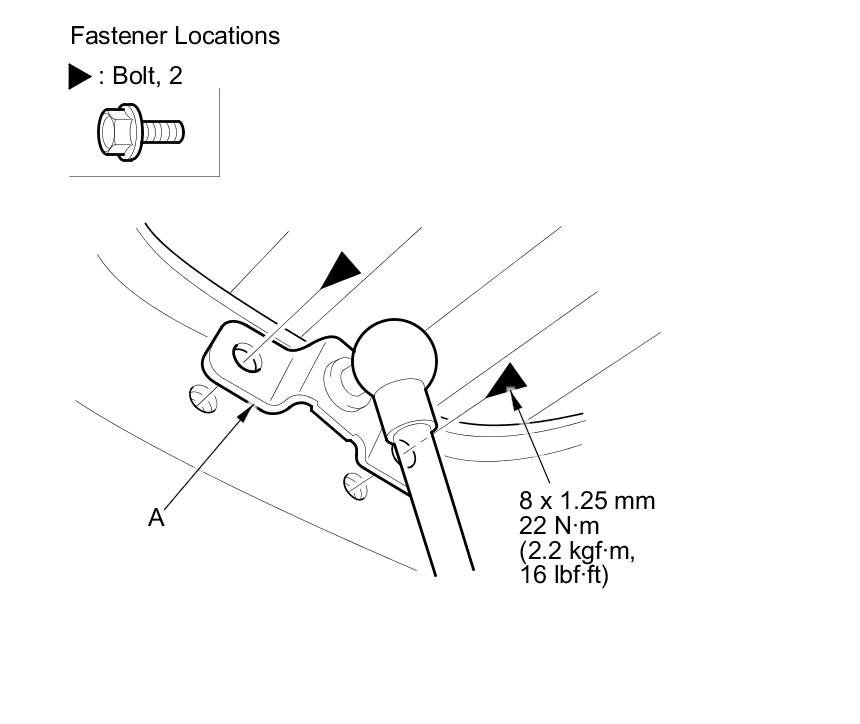

5. Fasten the pivot bracket (A) on the tailgate.





6. Reinstall the left tailgate side trim .

7. Check for water leaks.
