VSA/BSI Off Switch Test/Removal/Installation

VSA/BSI OFF Switch Test/Removal/Installation

Canada models

1. Remove the driver's outer dashboard trim Driver's Outer Dashboard Trim Removal/Installation.

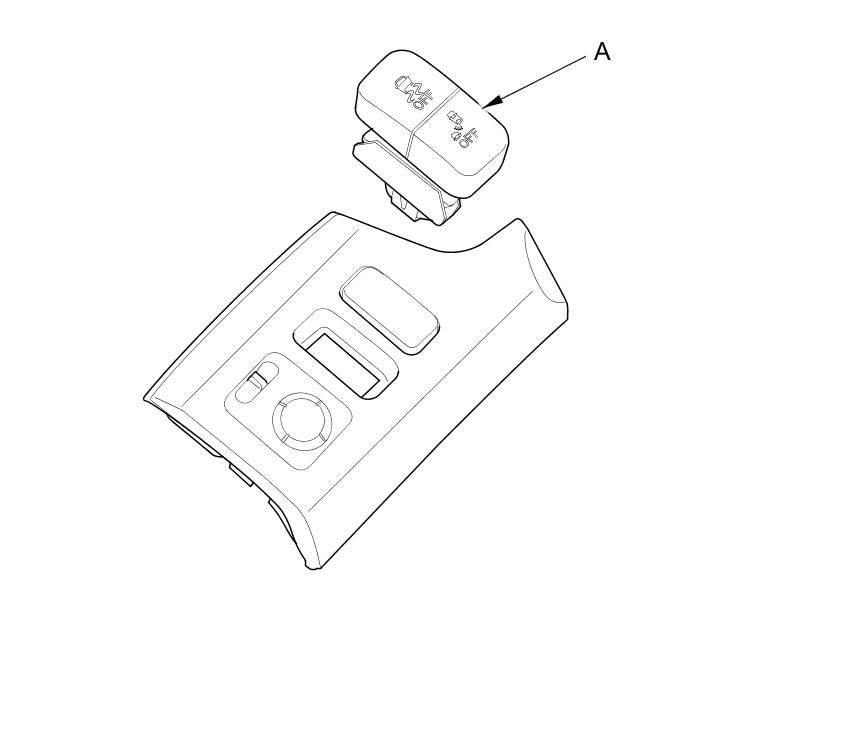

2. Remove the VSA/BSI OFF switch (A).

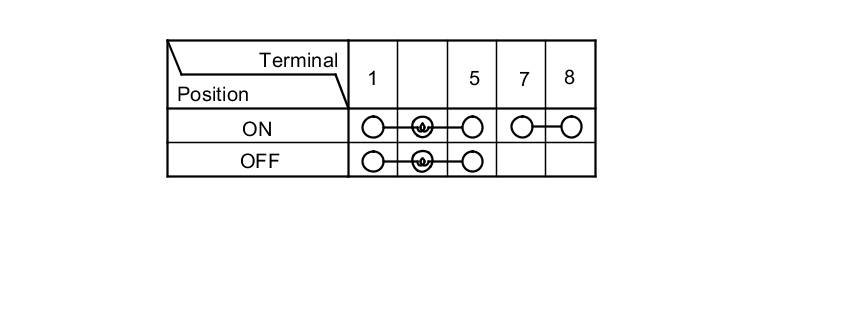

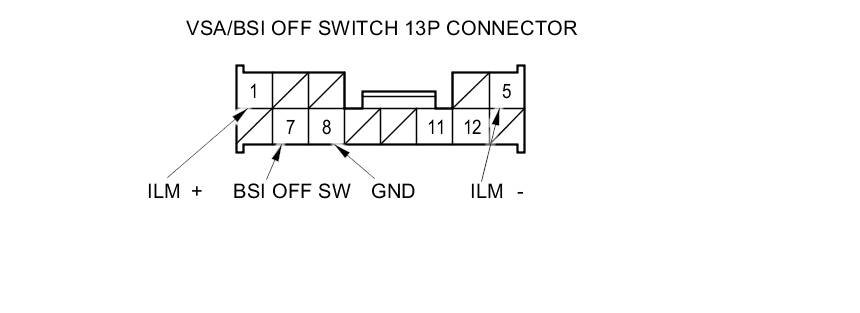

3. Check for continuity between the terminals in each VSA/BSI OFF switch position according to the table.

4. If the continuity is not as specified, install a new switch in the reverse order of removal.
