Side Defogger Vent Trim Removal/Installation




Side Defogger Vent Trim Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

- Take care not to scratch the dashboard or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- The driver's side defogger vent trim is shown; the passenger's side defogger vent trim is similar.

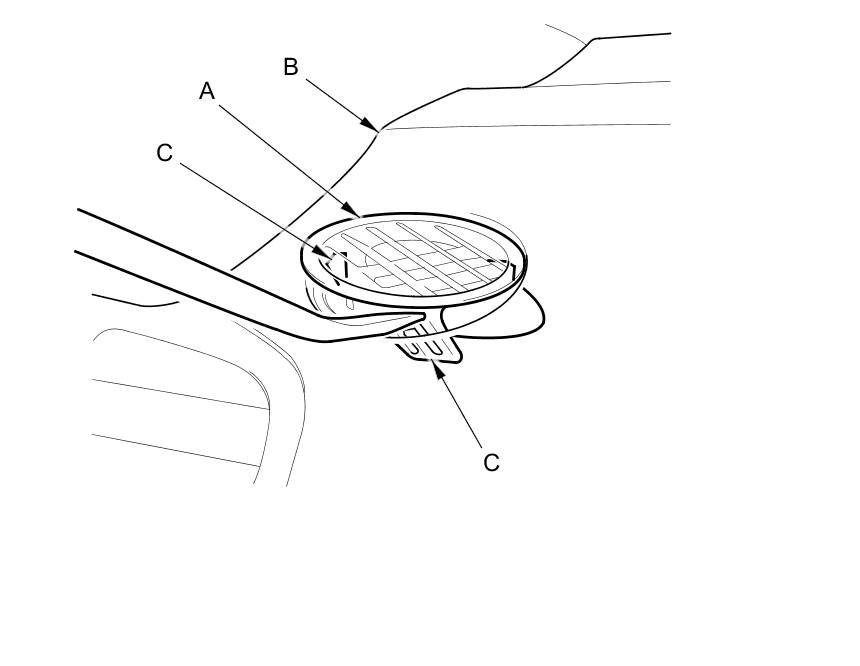

1. Insert the trim tool into a gap between the side defogger vent trim (A) and the dashboard (B), and release the hooks (C).





2. Install the side defogger vent trim in the reverse order of removal, and push the hooks into place securely.
