Rear Blower Motor Replacement




Rear Blower Motor Replacement

SRS components are located in this area. Review the SRS component locations Locations, and the precautions and procedures Service and Repair before doing repairs or service.

1. Remove the center console Center Console Removal/Installation.

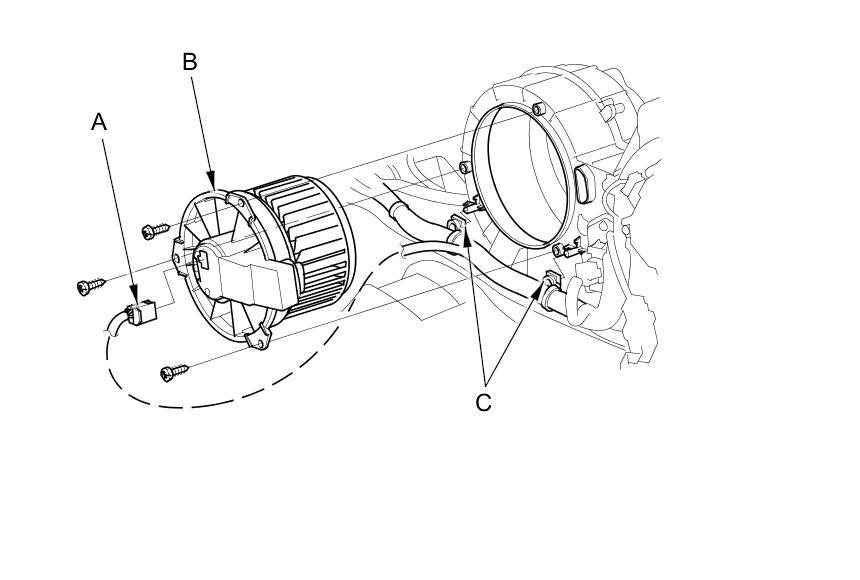

2. Disconnect the 2P connector (A) from the rear blower motor (B), then detach the wire harness clips (C). Remove the self-tapping screws and the rear blower motor from the rear HVAC unit.





3. Install the motor in the reverse order of removal.
