Front Evaporator Temperature Sensor Replacement




Front Evaporator Temperature Sensor Replacement

1. Remove the driver's dashboard undercover Driver's Dashboard Undercover Removal/Installation.

2. Remove the TPMS control unit Service and Repair.

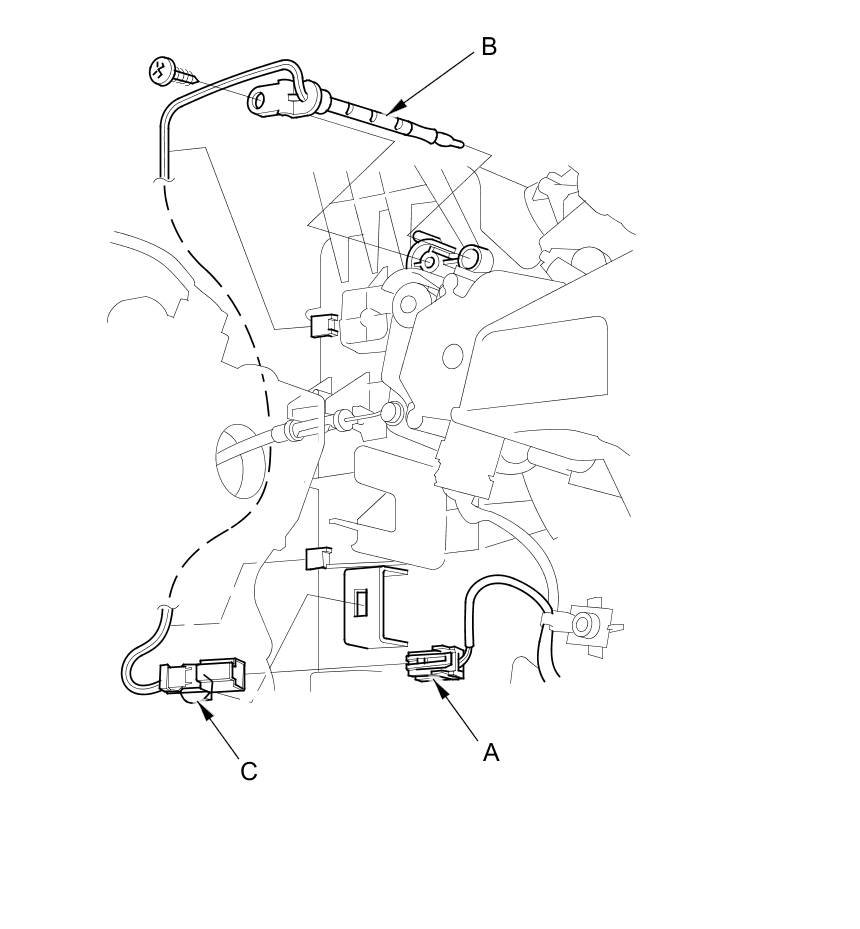

3. Disconnect the connector (A) from the front evaporator temperature sensor (B), then detach the connector clip (C). Remove the self-tapping screw and the front evaporator temperature sensor.





4. Install the sensor in the reverse order of removal.
