Cargo Lamp: Service and Repair

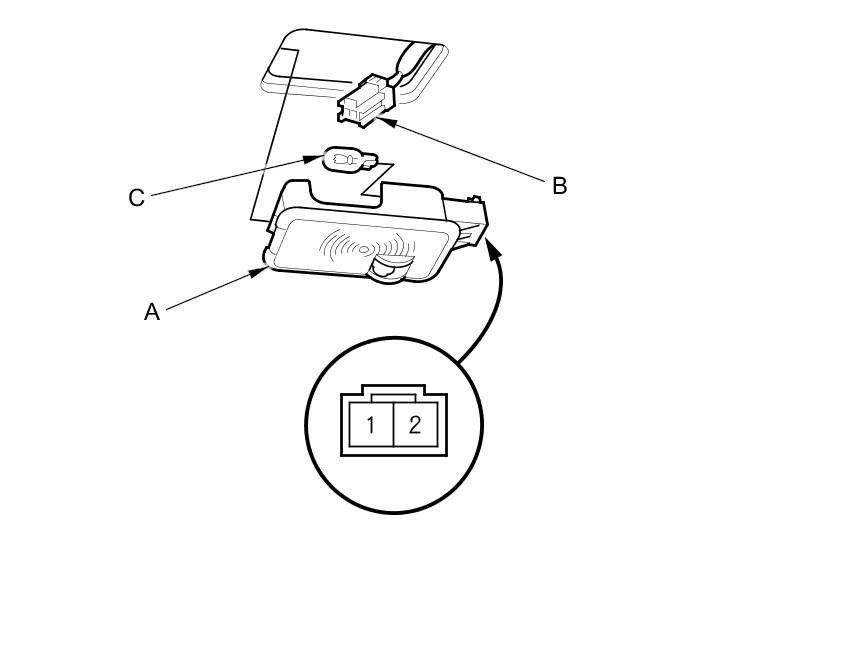

Tailgate Light Test/Replacement 1.
Open the tailgate.
2.
Carefully pry out the tailgate light (A).
3.
Disconnect the 2P connector (B) from the light.
4.
With the tailgate light switch ON, check for continuity between terminals No. 1 and No. 2.
There should be continuity. If there is no continuity, check the bulb (C). If the bulb is OK, replace the tailgate light.
