Footwell Light Test/Replacement
Footwell Light Test/Replacement 1.

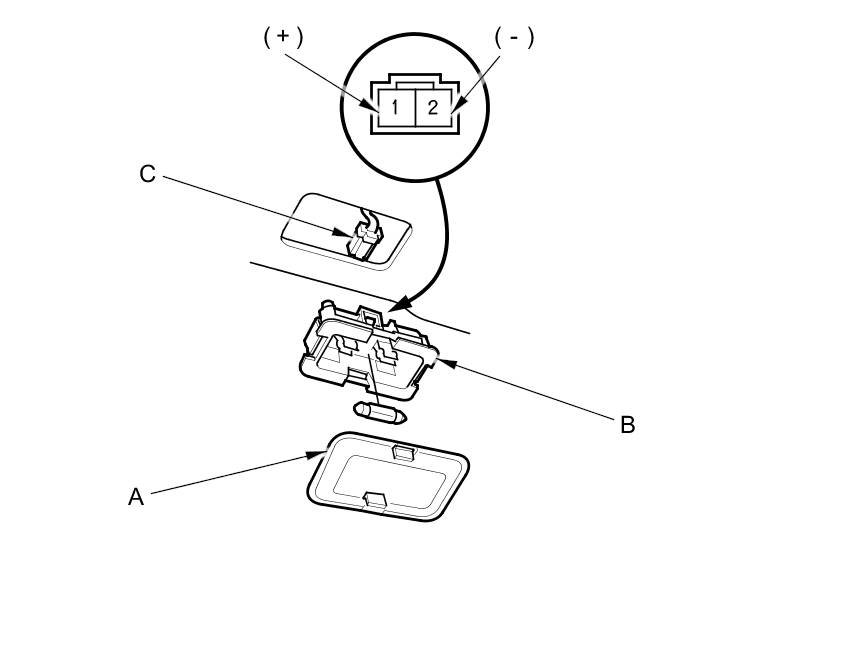

Carefully pry out the footwell light lens (A) and housing (B).
2.
Disconnect the 2P connector (C) from the light.
3.
Check for continuity between terminals No. 1 (+) and No. 2 (-). There should be continuity. If there is no continuity, check the bulb (C). If the bulb is OK, replace the footwell light.
4.
Install the parts in the reverse order of removal.
