HID Unit Replacement
HID Unit Replacement 1.
Do the battery terminal disconnection procedure.
2.
Remove the headlight assembly
Headlight Replacement.
3.

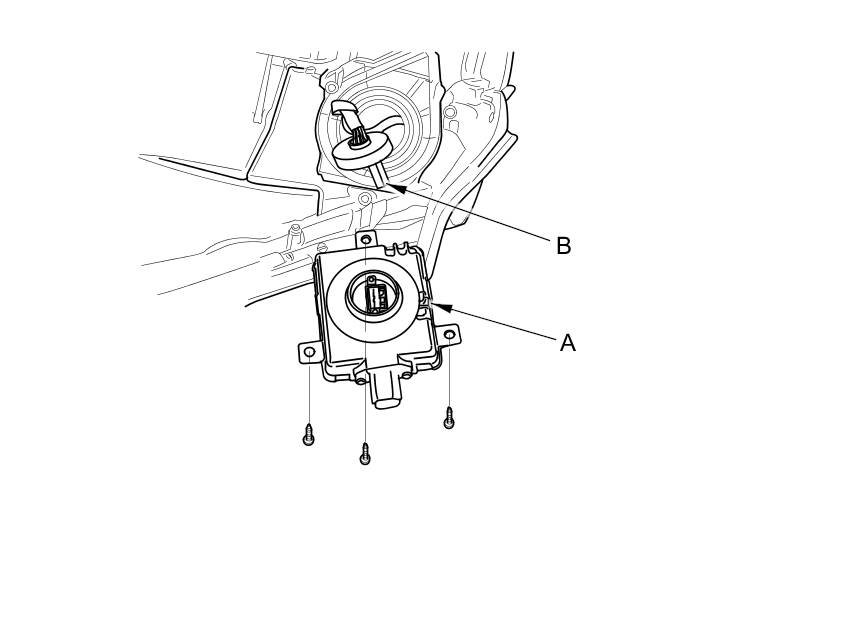

Remove the three mounting screws and the HID unit (A).
4.
Disconnect the 4P connector (B) from the HID unit.
5.
Inspect the gasket for damage. If damaged, replace it.
6.
Install the parts in the reverse order of removal.
7.
Do the battery terminal reconnection procedure.
