Headlight Replacement

Headlight Replacement

1. Remove the front bumper Service and Repair.

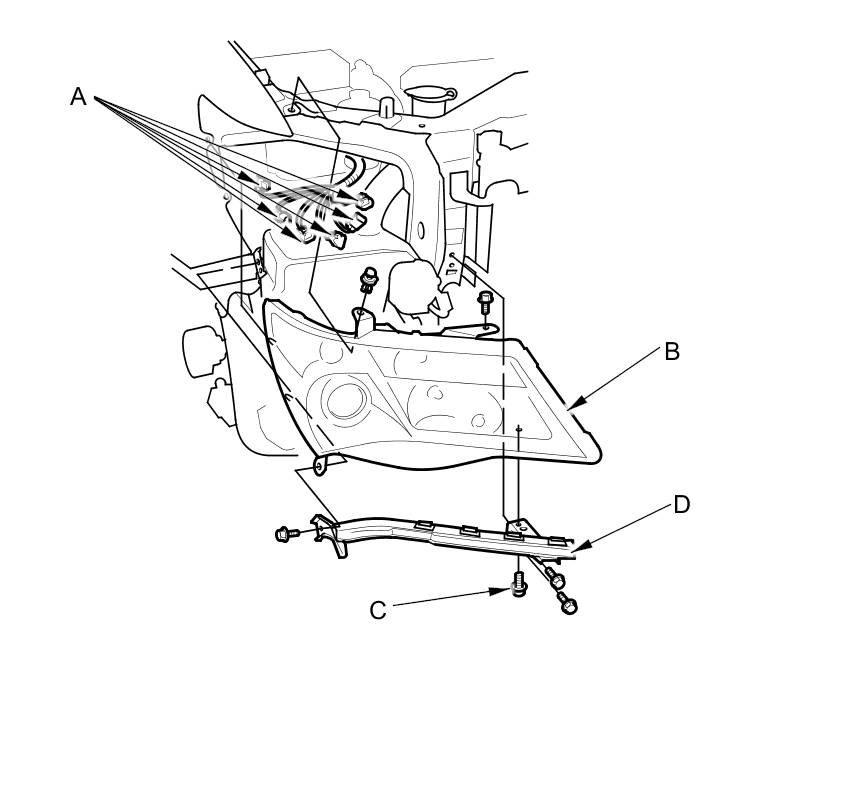

2. Remove the connectors (A) from the headlight assembly (B).

3. Remove the clips and bolts, then remove the headlight.

4. Remove the bolt (C) and the corner upper beam (D) from the headlight.

5. Install the headlight in the reverse order of removal.

6. After the replacement, do the headlight initial position learning procedure Programming and Relearning and adjust the headlight Adjustments.
