Ambient Light Test
Ambient Light Test 1.

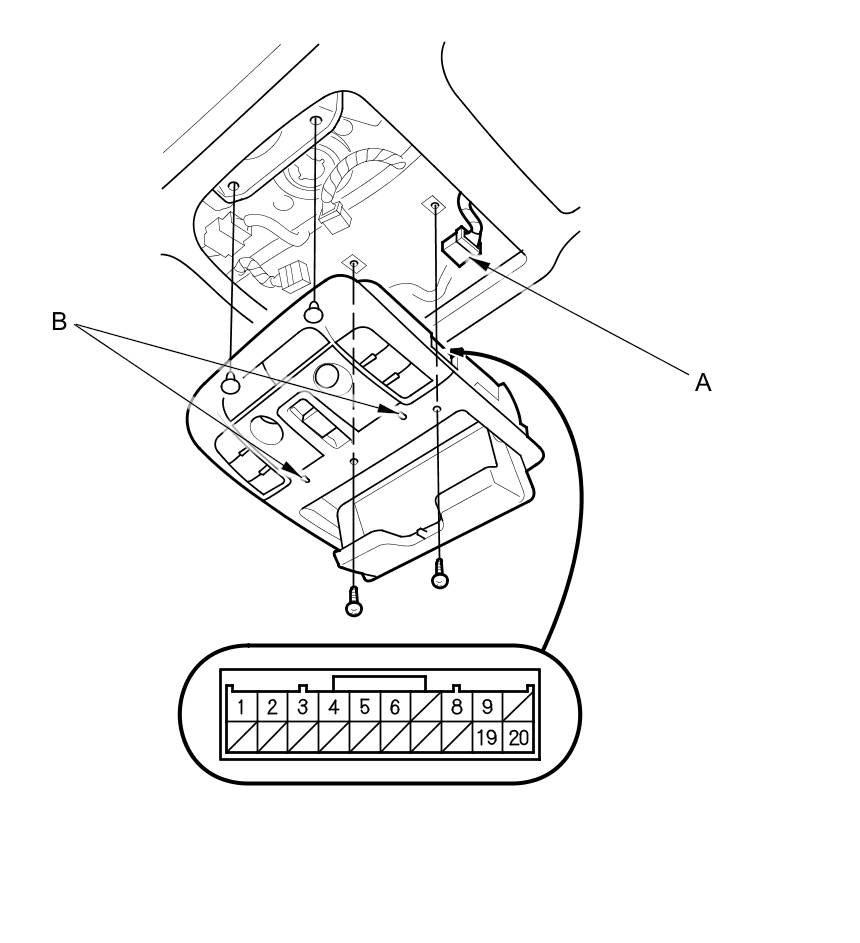

Remove the roof console
Interior Lights (Roof Console) Input Test/Replacement and disconnect the 20P connector (A).
2.
Connect roof console 20P connector terminal No. 1 to battery power and terminal No. 2 to body ground. The ambient lights (B) should turn on. If they do not turn on, replace the roof console.
