Left Front Damper Subharness
Left Front Damper Subharness

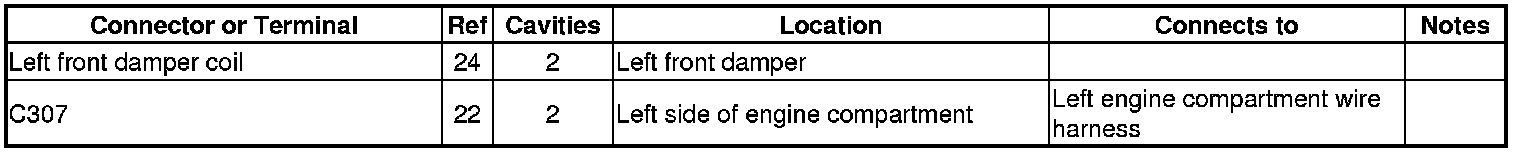

Connector and Harness Locations

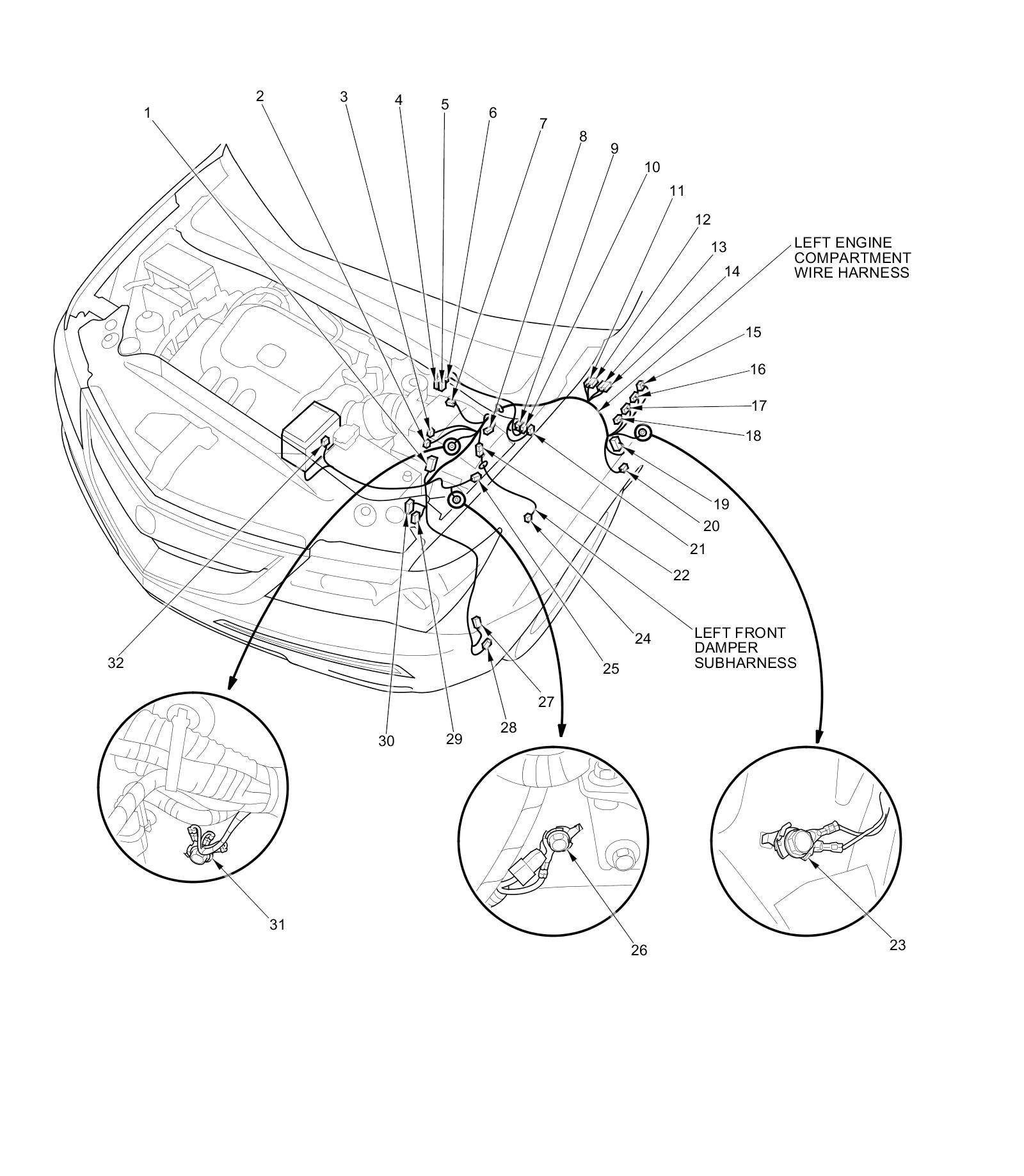

Left Front Damper Subharness (With active damper system)
