Output Shaft (Countershaft) Speed Sensor Replacement




Output Shaft (Countershaft) Speed Sensor Replacement

1. Raise the vehicle on a lift, or apply the parking brake, block both rear wheels, and raise the front of the vehicle. Make sure it is securely supported.

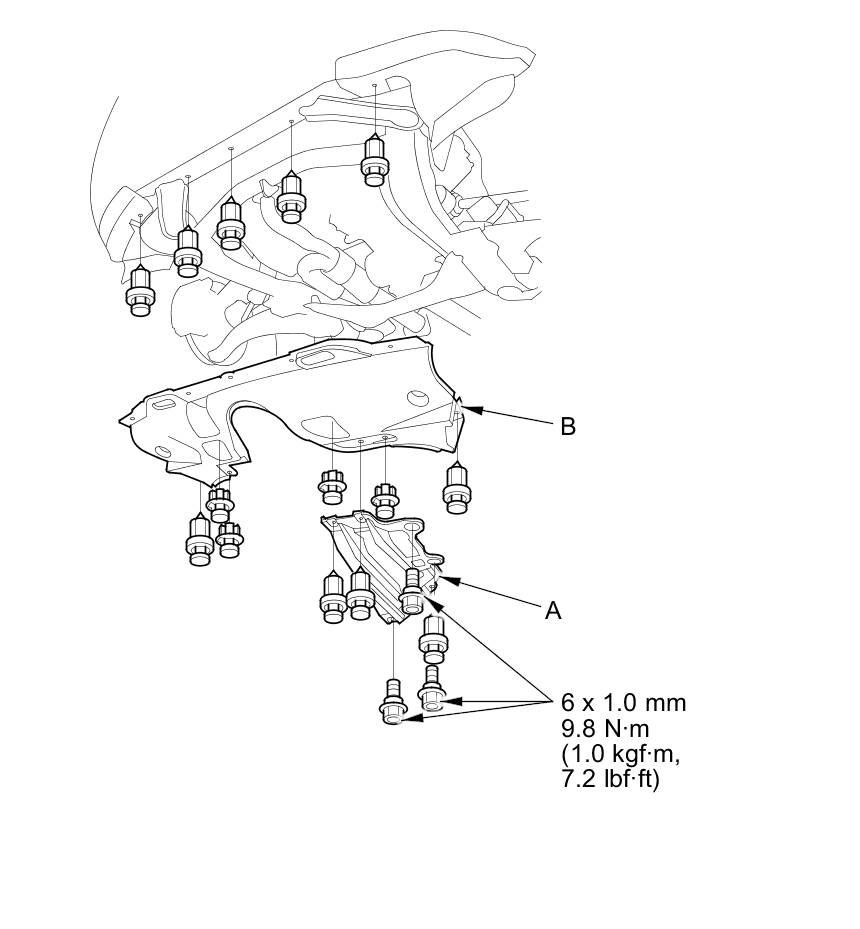

2. Remove the front undercover (A) and the splash shield (B).

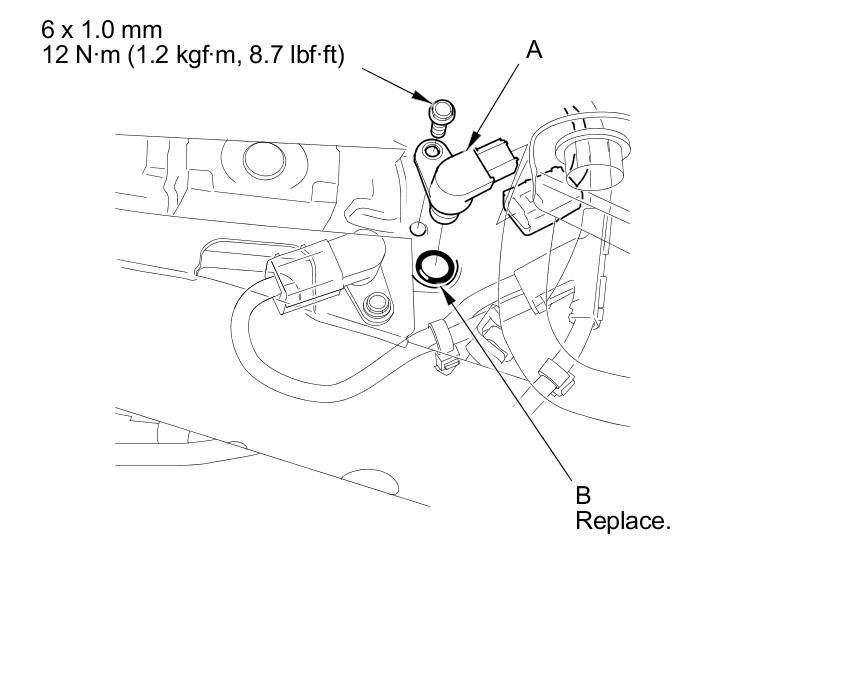

3. Disconnect the output shaft (countershaft) speed sensor connector, and remove the output shaft (countershaft) speed sensor (A).





4. Apply ATF to a new O-ring (B), and install the O-ring over the output shaft (countershaft) speed sensor. Then install the output shaft (countershaft) speed sensor.

5. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.

6. Install the splash shield and the front undercover.
