Wiper Arm: Adjustments

Wiper Arm/Nozzle Adjustment

Windshield

Wiper arms park position

1. When the wiper arms stop at the park (automatic stop) position, confirm that they are at the standard position.

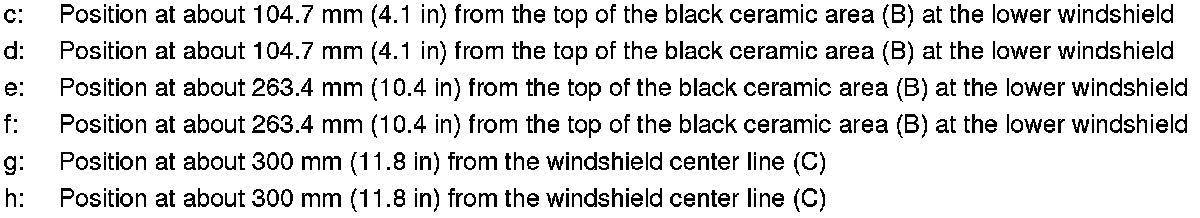

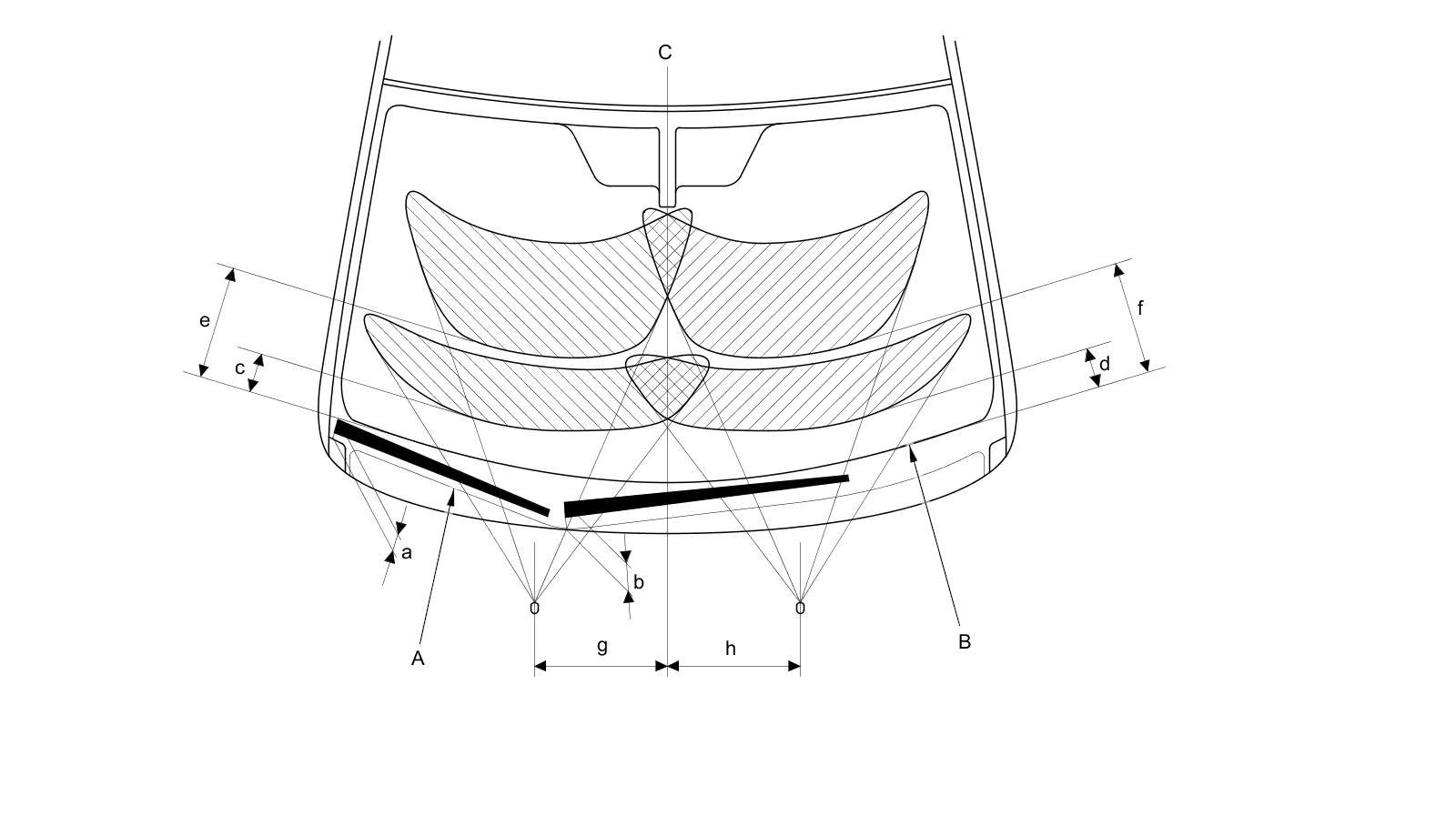

Washer nozzle position

2. When you turn on the washers, confirm more than 50% of the washer fluid lands within the spray area. If the spray area is not within the standard positions, adjust the nozzles.










Rear Window

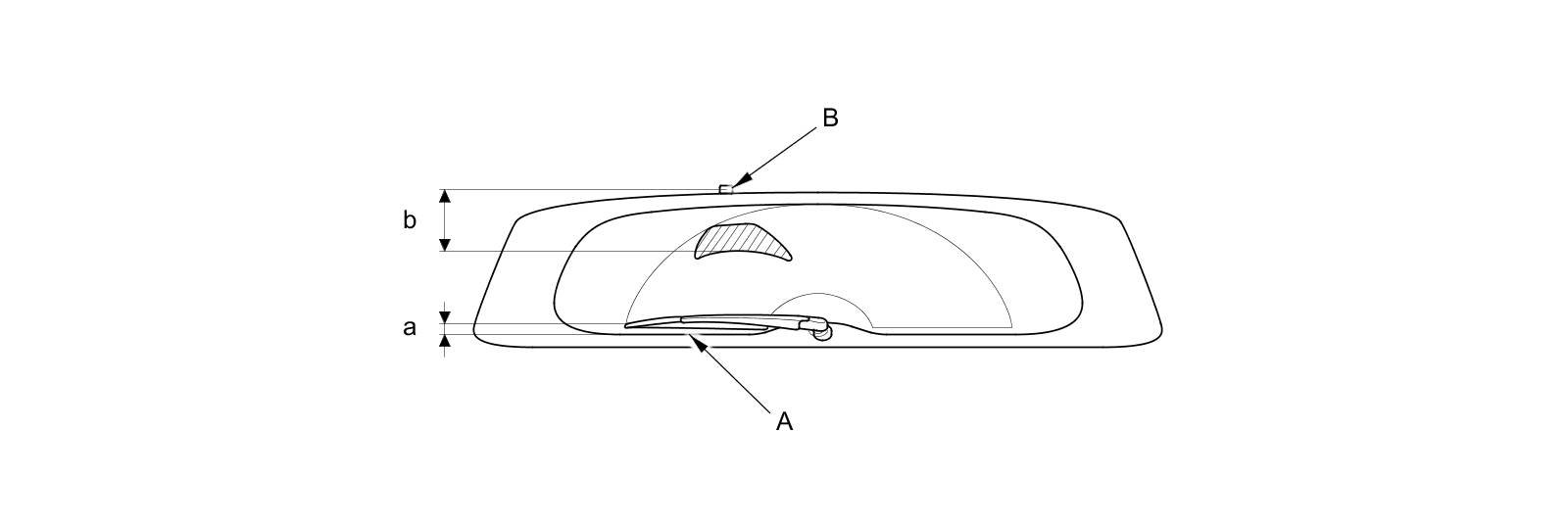

Wiper arm park position

1. When the wiper arm stops at the park position, confirm that it is at the standard position.






Washer nozzle position

2. When you turn on the washers, confirm more than 50% of the washer fluid lands within the spray area. If the spray area is not within the standard positions, adjust the nozzles.
